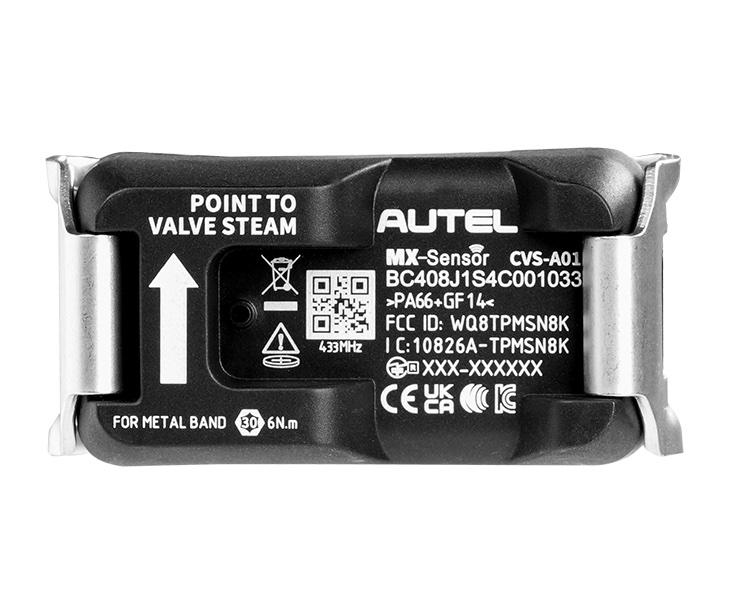

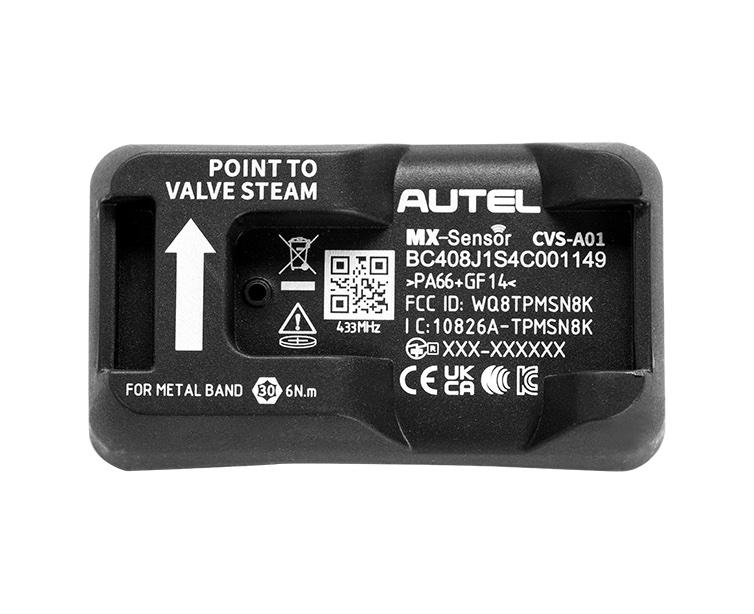

This universal programmable sensor is designed to replace sensors on 95% of system-equipped commercial vehicles, covering Light, Medium, and Heavy-Duty. Features a strap-style installation supports either fabric or metal straps, with the compatible with wheel rims ranging from 14 to 24.5 inches. Capable of monitoring tire pressure, temperature, acceleration, etc., and compatible with the vehicle's original relearn method.
Universal programmable design, complete TPMS solution for commercial vehicle
A universal programmable commercial vehicle sensor that matches OE performance
Monitors tire pressure, temperature, and acceleration, and is compatible with the vehicle's original relearn method
Can be programmed with Autel TPMS tools to provide a truly complete TPMS solution

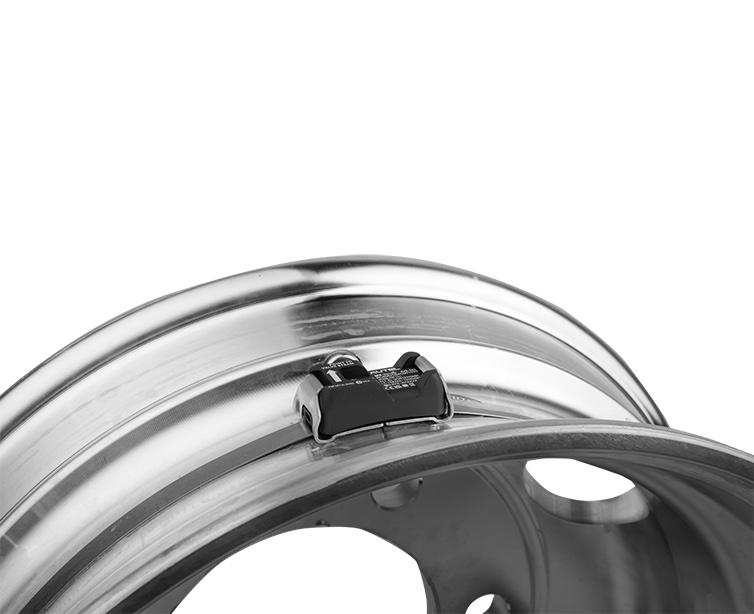

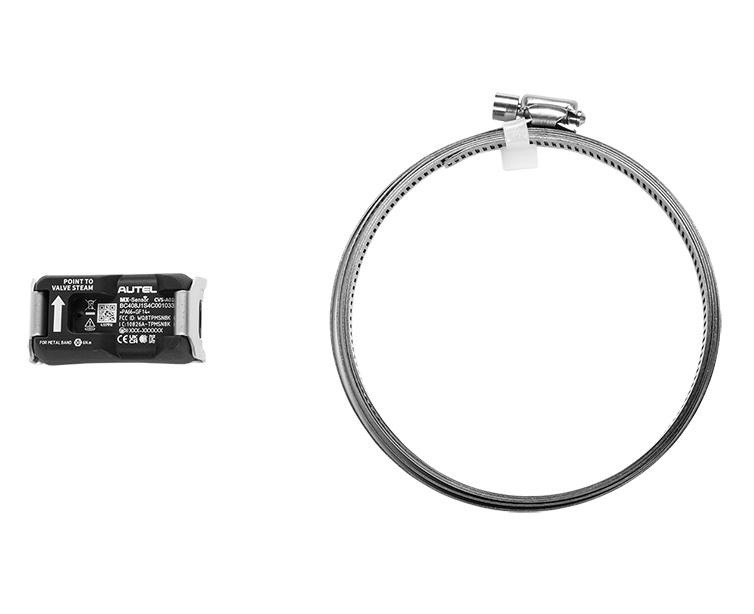

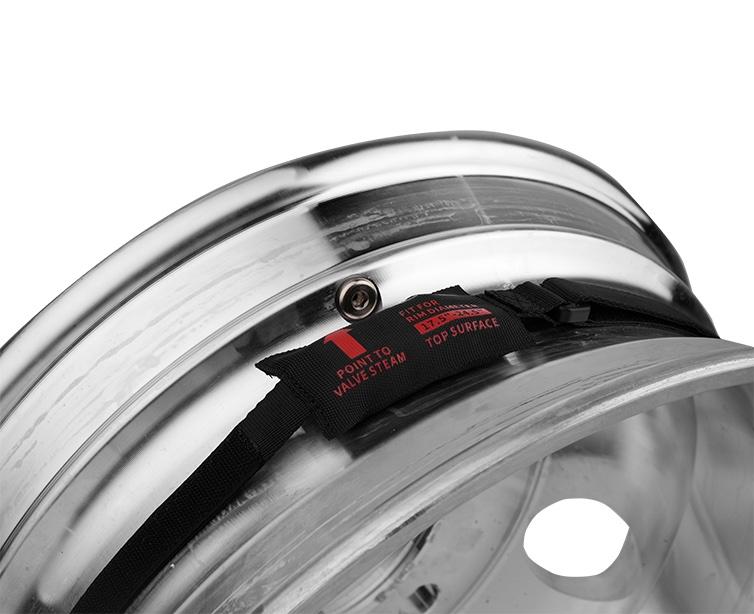

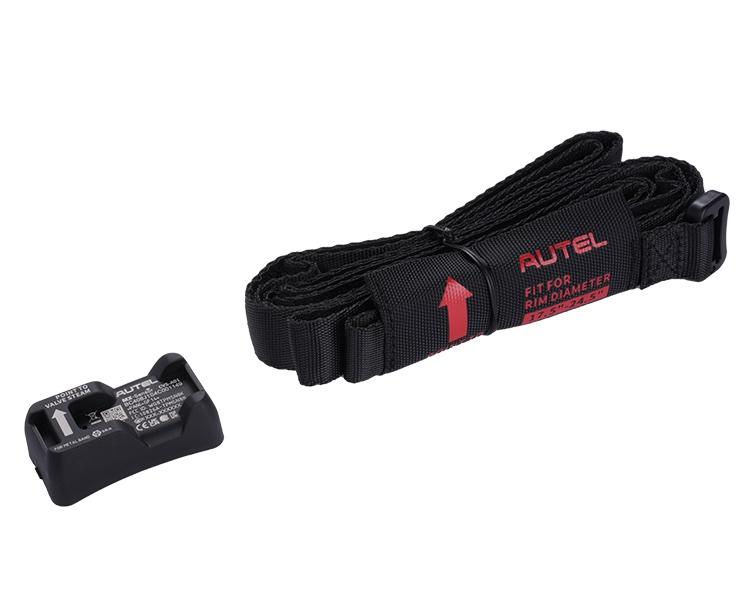

Features a strap - style installation with options for fabric or metal straps, and fits 14" to 24.5"rims
Acts as a universal sensor that can be freely programmed for use in trucks, trailers, and buses
Quality control, maximum sensor signal strength, tested & certified to meet SAE Standard SAE J2848
Supports speeds of up to 130 km/h (240km/h with metal strap) and has a lifespan of over 5 years
| Item | Description |
| Weight (sensor body only) | 26.3 g |
| Dimension（W x H x D） | 54.0 x 29.4 x 18.1 mm |
| Max. pressure range (relative) | 1400 kPa |
| Operating relative pressure | 0-1.4 MPa |
| Operating temperature | -40°C to 125°C |
| Operating frequency | 433 MHz |
| Battery capacity | 550mAh |
| Battery life | ≥5 years |
