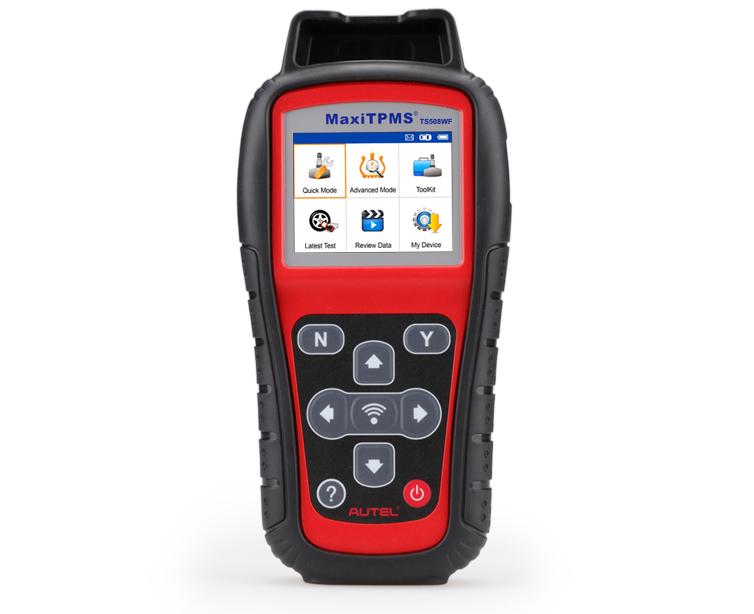

The MaxiTPMS® TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. The Update by Wi-Fi function helps the update experience more convenient. It can be your right choice to experience AUTEL TPMS lines.

left right
  • MaxiTPMS TS508WF (NEW)
  • MaxiTPMS TS508WF (NEW)
  • MaxiTPMS TS508WF (NEW)
  • MaxiTPMS TS508WF (NEW)
  • MaxiTPMS TS508WF (NEW)

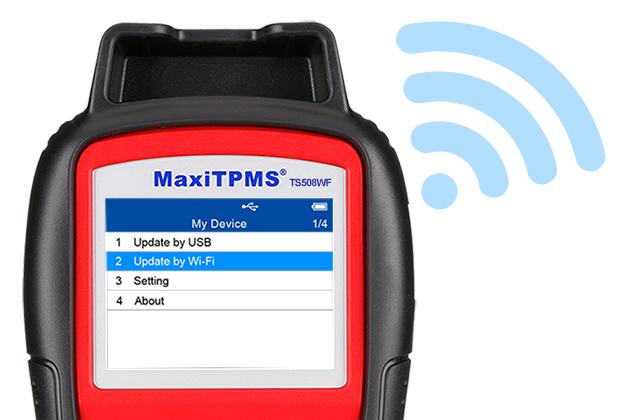

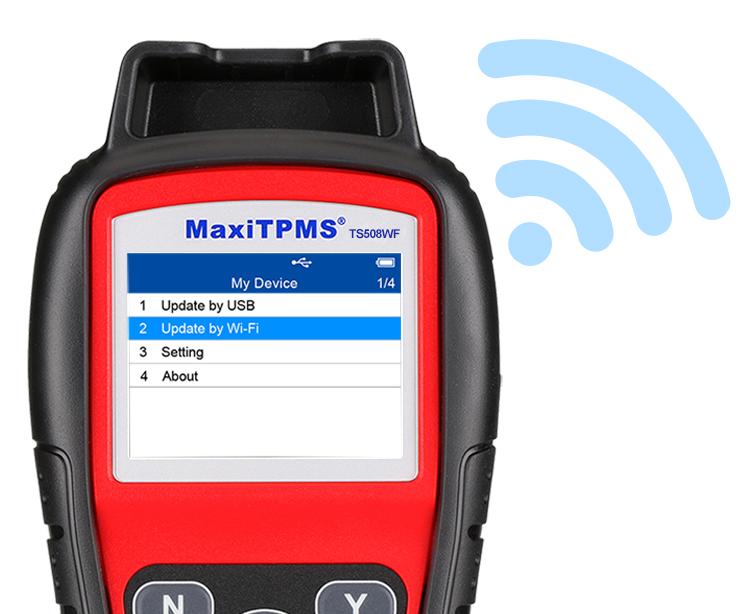

Wi-Fi UPDATE

The TS508WF provides two methods for updating: Update by Wi-Fi and Update by USB. The two methods bring customers faster and more convenient updating experience, disencumbering the worries that update must be done with computer. From now on, you only need to be in a Wi-Fi environment.

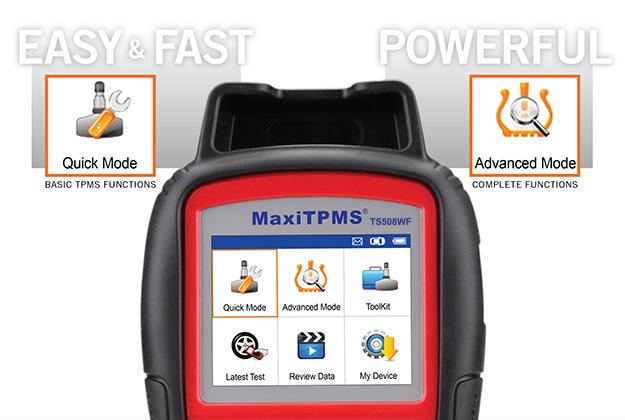

TWO TPMS SERVICE MODES

The TS508WF is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.

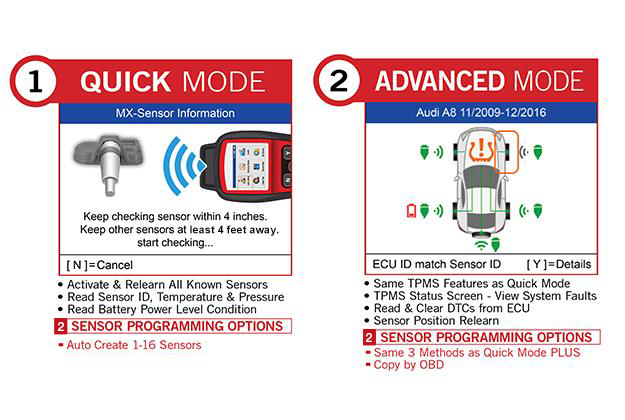

QUICK MODE / ADVANCED MODE COMPARISON

TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;

TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.

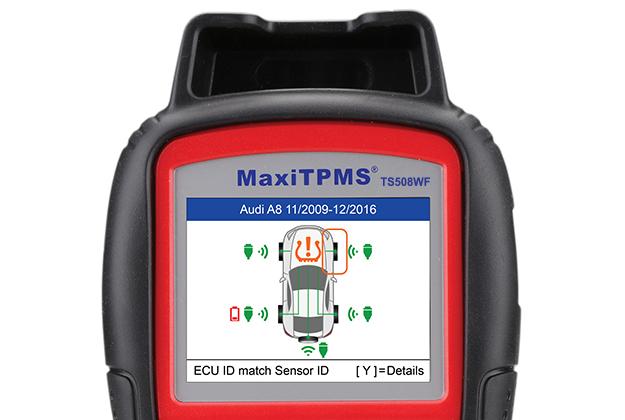

EXCLUSIVE TPMS STATUS SCREEN

1.Read ECU sensor ID;

2.Check sensor ID and ECU ID matching condition;

3.Read DTCs from ECU and erase DTCs;

4.View DTCs detail description;

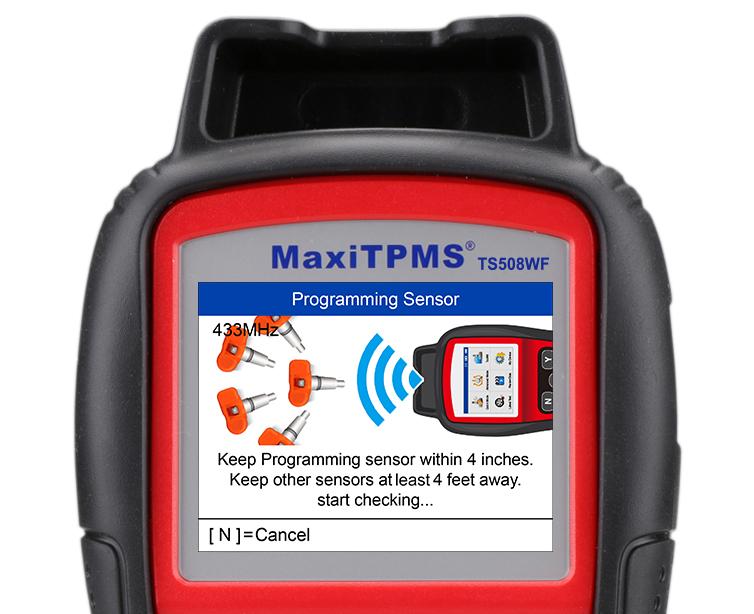

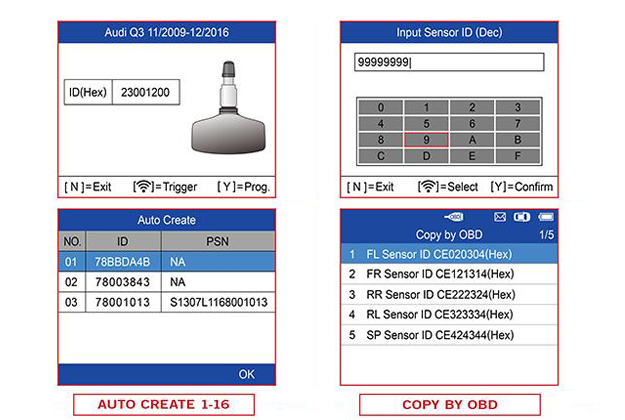

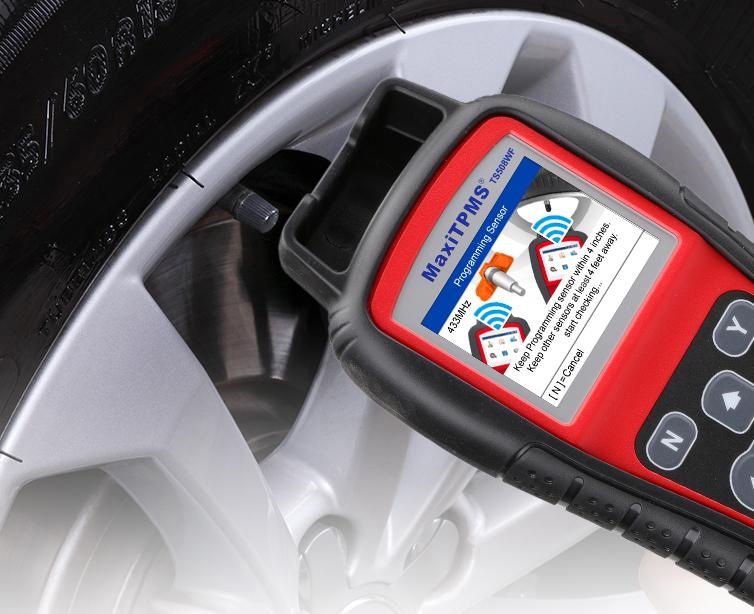

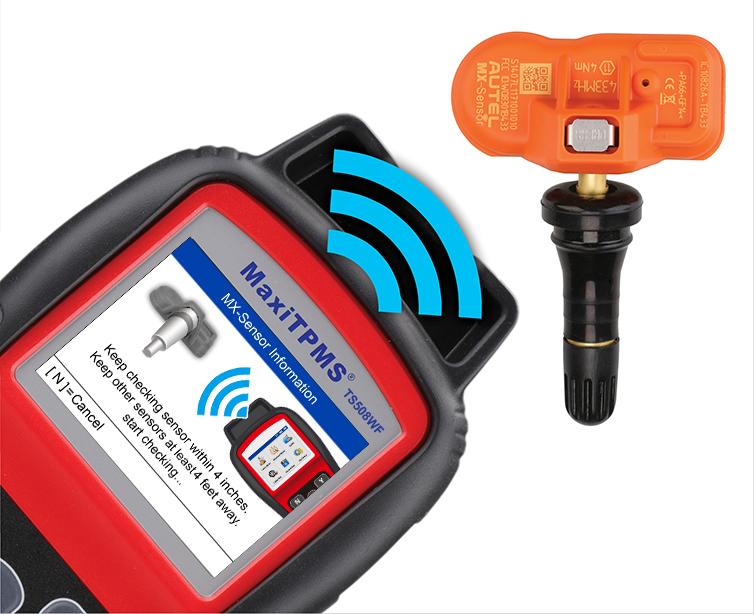

TWO MX-SENSOR PROGRAMMING OPTIONS

1.Auto Create 1-16;

2.Copy By OBD;



Display TFT color display (320 x 240 dpi)
Power 3.7 V Li-polymer battery; 3200 mAh
Operating Temp. 0°C to 50°C (32°F to 122°F)
Storage Temp. -20°C to 70°C (-4°F to 158°F)
Dimensions 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight 0.39 kg (0.86 lb.)



Comparison TS408 TS508 TS508WF TS608 TS401 TS501 TS601 TPMS PAD MS906 TS
TPMS function
Quick Mode & Advance Mode
Activate TPMS sensors
Read sensor data
TPMS diagnose, one step for complete TPMS health check
Read/clear TPMS DTCs; on-screen DTC description
Scan TPMS sensor ID and copy ID into MX-Sensor
Program MX-Sensor by auto creating sensor ID
Read Sensor ID by OBD and copy ID into MX-Sensor
Relearn by OBD function
Relearn procedure guide on the tool
Check Key FOB
TPMS Toolkit - special TPMS functions
Diagnostic function
Basic OBDII code reader
Read/clear codes for all electronic systems
Support all 10 test modes of the latest J1979 OBDII test specs
Enhanced OBDII Mode 6
Display live data in text, graph & analog for easy data review
Relearn parking brake pad after replacement;
Reset Steering Angle Sensor (SAS);
Reset service mileage and service intervals;
Forced regeneration and adjusting injectors;
Support battery registration and reset
Support IMMO functions
Complete diagnostic function
Tool features
Built-in rechargeable li-ion battery
Strong housing with protective rubber boot
Print TPMS sensor data via PC
Internet updatable USB USB WIFI+USB WIFI USB SD card SD card USB WIFI
Multilingual support
Historical test records
Software Update free free free one year free free free free free 1 year free
Limited one year warranty



  • User manual

  • OBD II cable

  • USB cable

  • Carry case


  • AC Adapter
