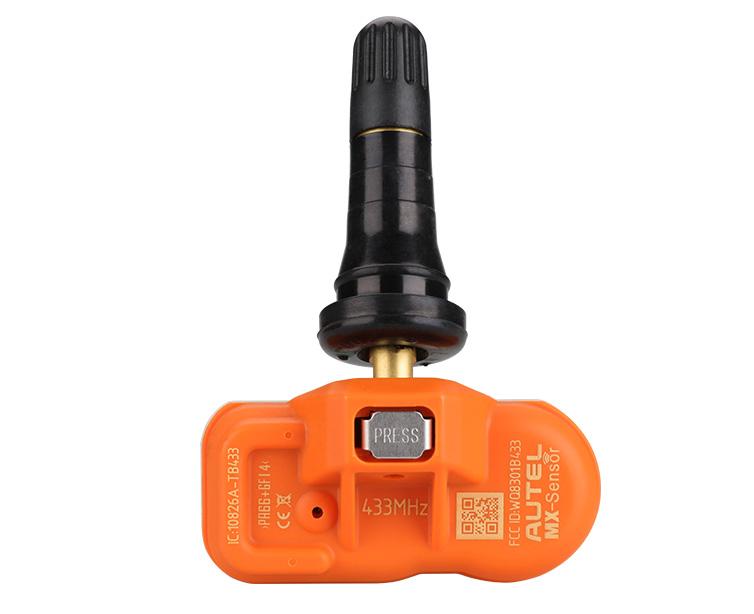

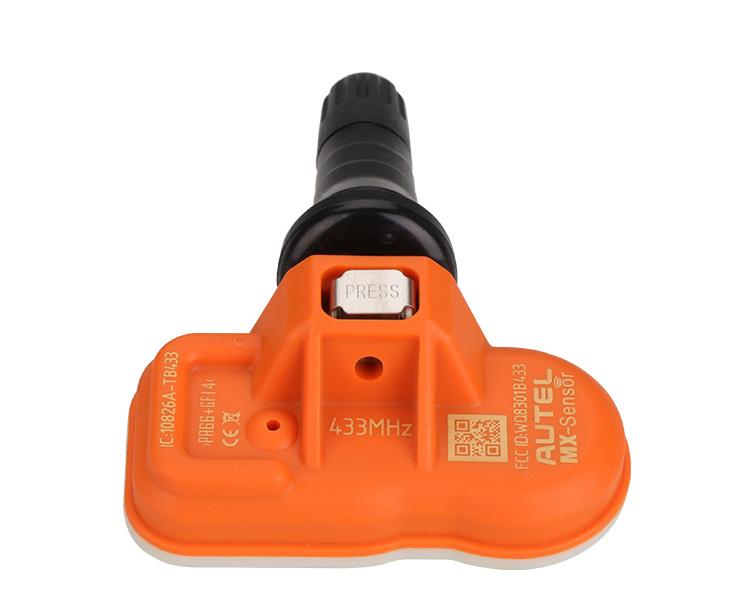

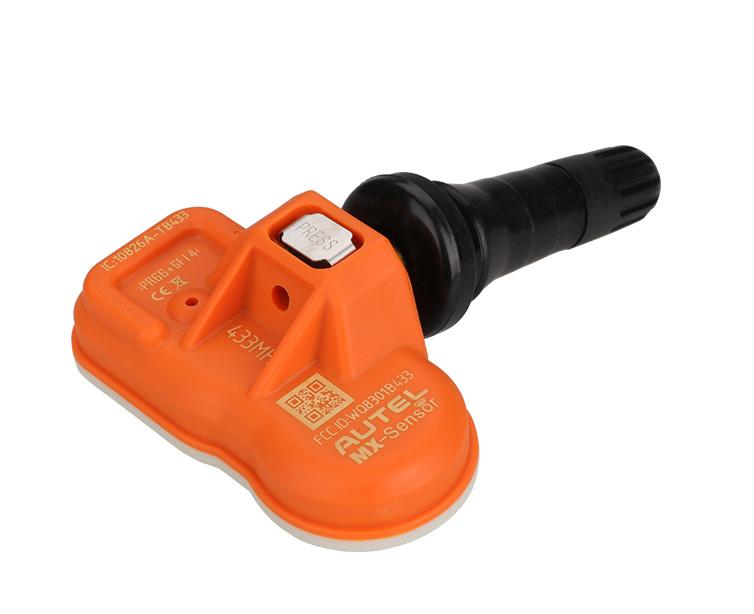

433MHz MX-Sensor R

PROGRAMMABLE UNIVERSAL TPMS SENSOR
Autel MX-Sensor interchangeable valve stems provide a limited 2-SKU inventory required for 98% vehicle coverage. The exclusive MX-Sensor patented PRESS release valve design, allows rubber and metal valve stems to freely interchange by hand, without requiring a tool for sensor head fitting. Built to match or exceed OEM sensors in frequency strength and durability, MX-Sensors are 100% ID clone-able with no relearn required and offer latest model vehicle coverage because they quickly update during installation with an Autel wireless programming tool.

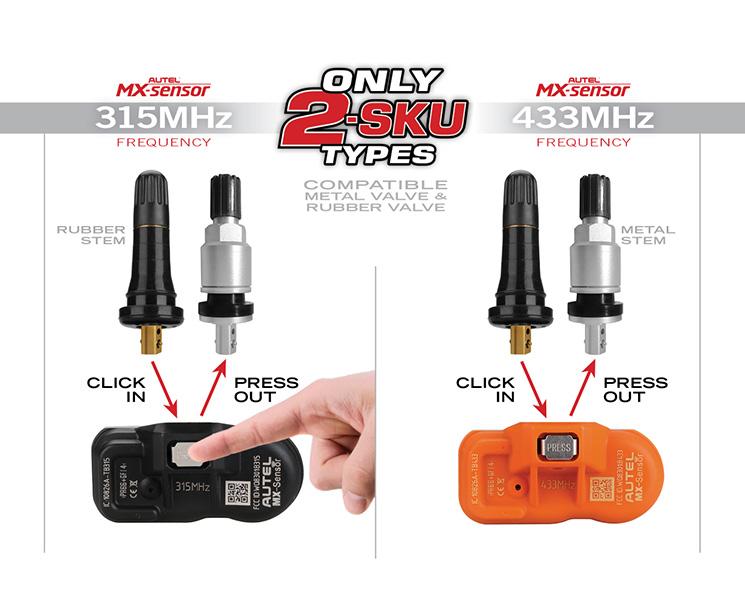

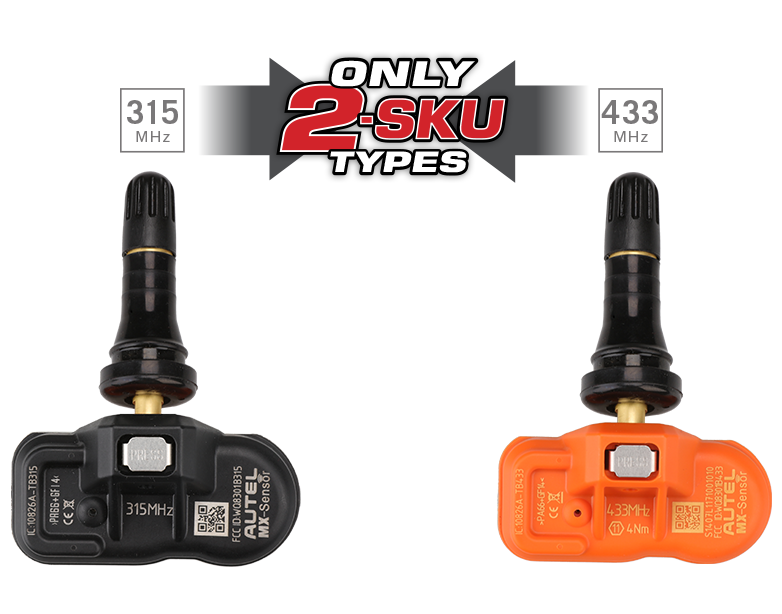

98% vehicle coverage with only 2 SKU types

Facing the growing OE sensor SKU numbers, AUTEL help to greatly reduce tire dealers and mechanic shop’s inventory to only 2 SKU types, 315 MHz sensor and 433 MHz sensor, to replace 98% of OE sensors in the market. MX-Sensors are built to perform like O.E sensor, in terms of signal interval, durability & functionality.

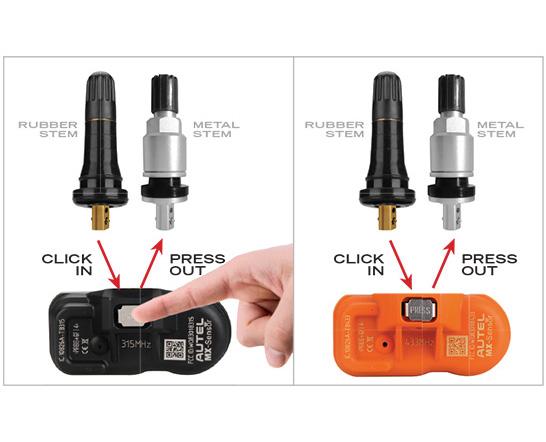

Interchangeable valves with press design

AUTEL MX-Sensors have both rubber valve and metal valve available. The unique patented press release valve design allows rubber and metal sensor valves to be freely interchanged by hand, without requiring a tool for sensor head fitting. Simply click in and press out. Installing TPMS sensors has never been so easy.

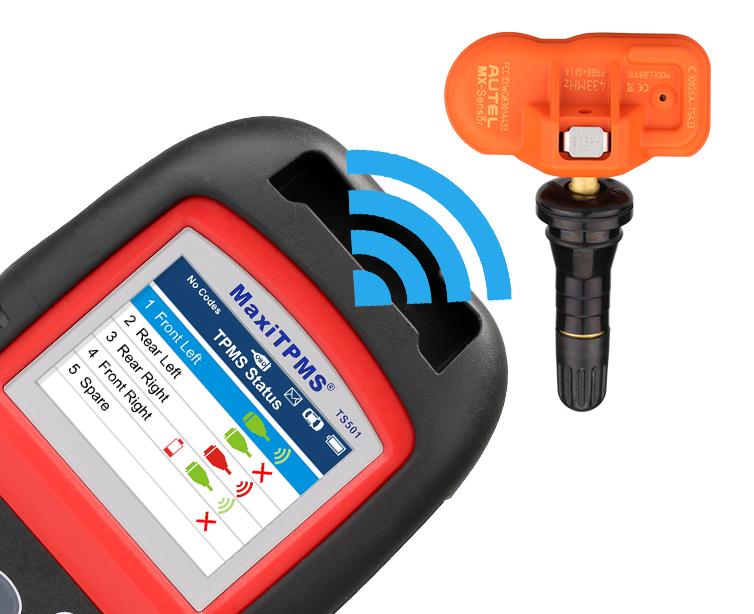

Wireless programming & 100% clone-able

AUTEL MX-Sensor can be wireless programmed by all AUTEL TPMS tools. MX-Sensor is 100% clone-able. No relearn is required when the MX-Sensor is cloned with the original sensor ID and put in the same position.

Tested & certified to meet SAE standards

AUTEL high-quality MX-Sensor is tested and certified to meet SAE standards. AUTEL guarantees MX-Sensor are free from manufacturing defects for a period of 24 months or 24,000 miles, whichever option comes first.



Battery Life ≥5 years
Operating Temperature -40°C to +125°C
Storage Temperature -40°C to +150°C
Operating Humidity 90%

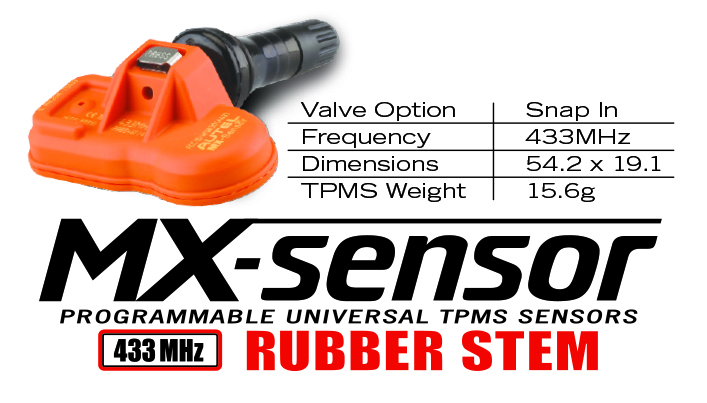

Operating Frequency 433 MHz
Pressure Monitoring Range 100 to 900 kPa
Pressure Reading Accuracy ±10 kPa
Temperature Reading Range -40°C to +125°C
Temperature Reading Accuracy ±5°C
G Sensor Reading Accuracy ±15%
Transmission Power 5-8 dBm
Battery 3.0 V
Dimensions (W x H x D) 54.2 mm x 29.4 mm x 19.1 mm (Snap-in Sensor)
Weight (Without Valve) 15.6 g (Snap-in Sensor)



Greatly reduce sensor inventory investment with the Autel MX-Sensor 2-SKU solution covering 98% vehicle coverage. The easy to use exclusive PRESS release valve design, reduces tire and wheel service time to increase profits. With both rubber and metal accessory valves available, easily choosing the correct 2-SKU sensor option then installing the preferred valve stem will minimize installation time and provides a quick and simple assembly.



  • User manual
