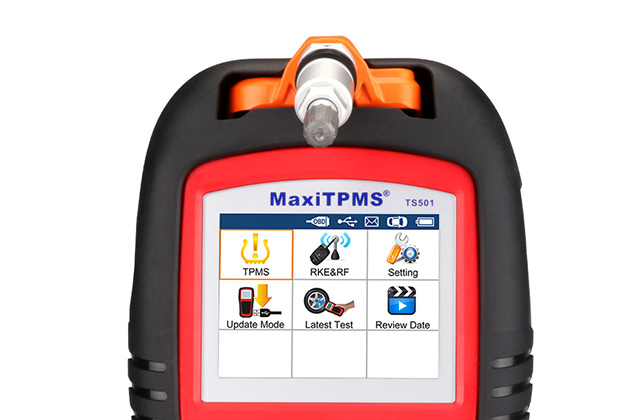

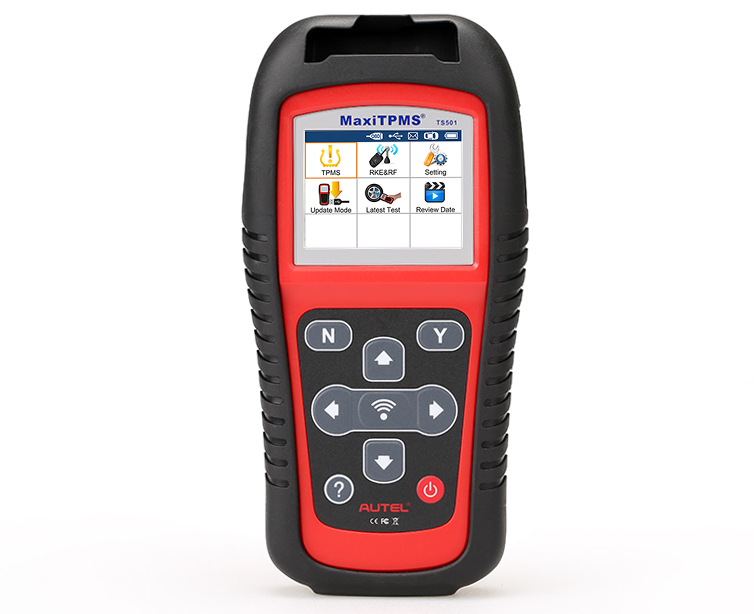

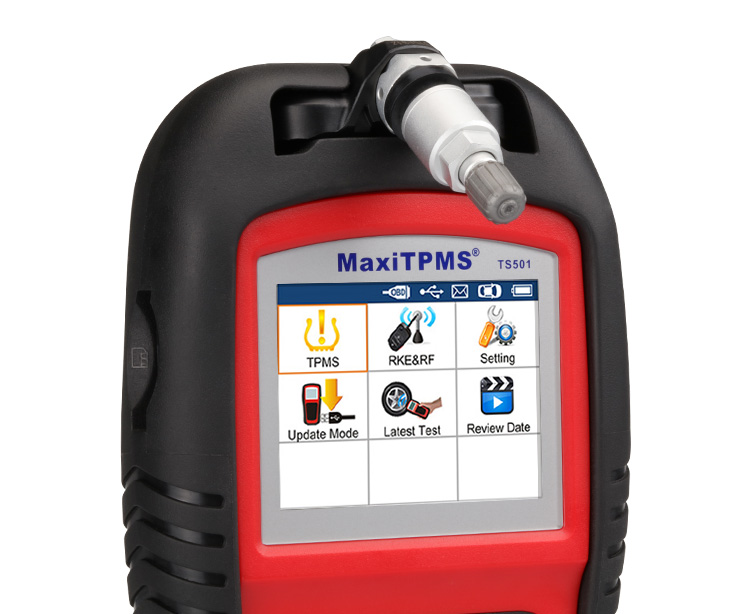

MaxiTPMS TS501

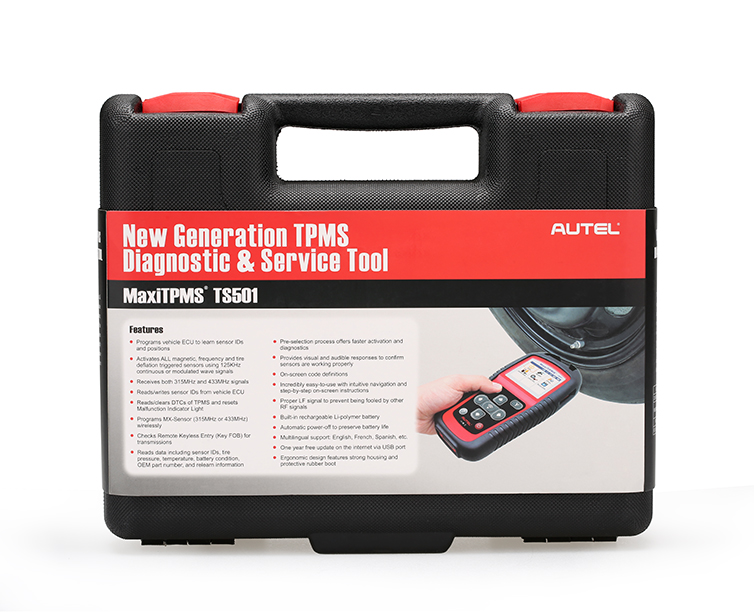

COMPLETE TPMS DIAGNOSTIC TOOL PACKAGE KIT

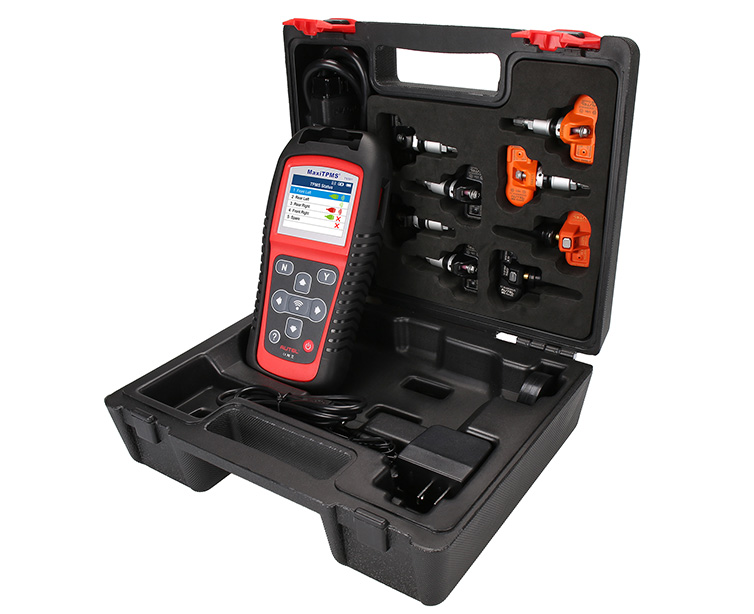

The MaxiTPMS TS501 is capable of wirelessly diagnosing TPMS problems as well as activate any known OEM / Universal TPMS sensors, ID clone or reprogram sensors to the vehicle's ECU, and turn off warning lights. The TS501 comes packaged as a complete kit with 8 Autel MX-Sensors, to offer several sensor options for immediate project needs.

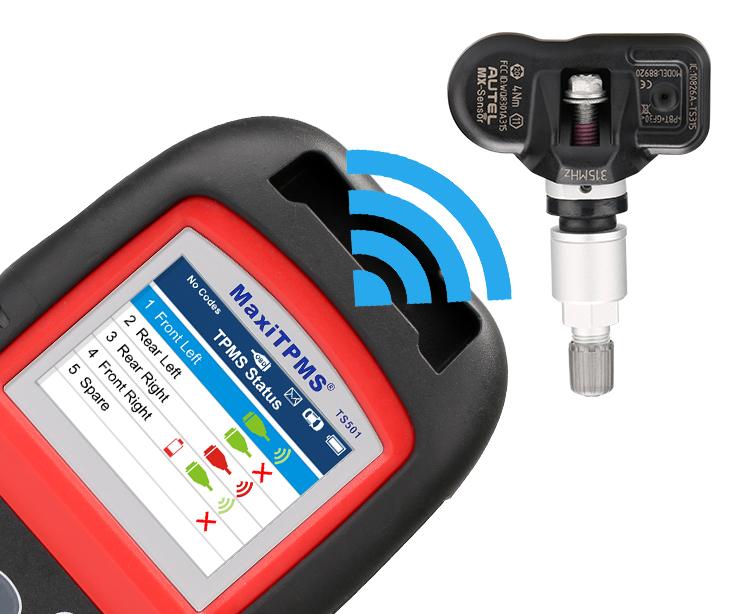

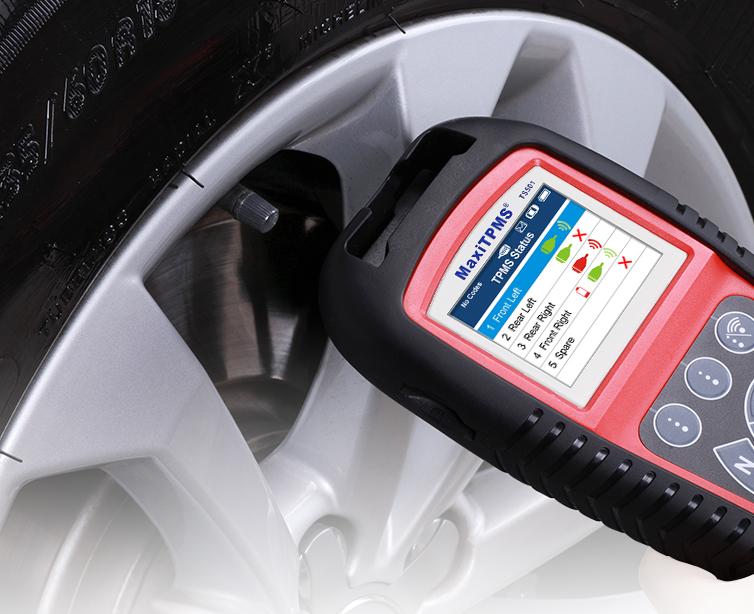

At-A-Glance TPMS Status Screen

The single screen organization allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features, compare sensor and ECU data, then instantly pinpoint system faults to identify the fix. This At-A-Glance view of all sensor information easily shows the location of which sensor battery is low and needs to be replaced soon.

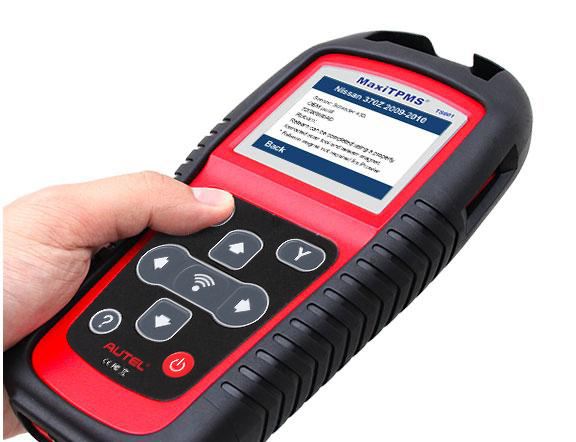

Easy To Use Software Operation

Performing a basic sensor activation or complex diagnostic tool functions, is easy as following the program options and on-screen display instructions. The TS501 provides code definitions and visual / audio responses to make the operations much easier and more convenient to complete.

Download FREE software updates for enhanced diagnostic functions and extended vehicle coverage. Now even your old TPMS tool can perform like new!

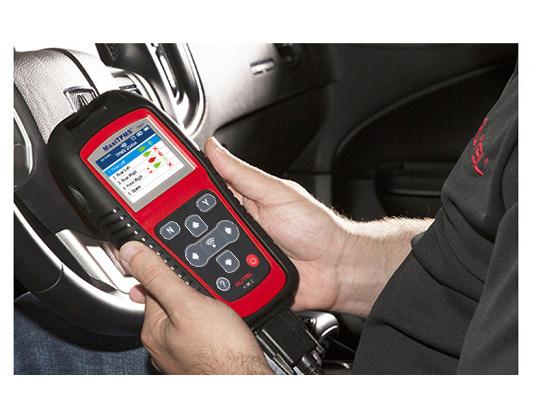

OBDII Connected TPMS Diagnostics

The TS501 can provide relearn procedures for specific sensors and connect with the OBDII cord to the vehicle's ECU to offer multiple programming options including clone sensor IDs, or auto create ID, or manual write sensor IDs with no sensor re-learn required for sensor positioning.



Display TFT color display (320 x 240 dpi)
Power  3.7 V Li-polymer battery; 2400mAh
Operating Temperature 0 to 50°C (32 to 122°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Dimensions (W x H x D) 202.2 mm (7.96") x 106.7 mm (4.20") x 37.7 mm (1.48")
Connectivity Mini USB 2.0*1
Weight 0.4 kg (0.88 lb.)
Warranty 1 year
Software Update Free



Comparison TS608 MS906 TS TS601 TS508 TS501 TS408 TS401 TPMS PAD
TPMS function
Quick Mode & Advance Mode
Activate TPMS sensors
Read sensor data
TPMS diagnose, one step for complete TPMS health check
Read/clear TPMS DTCs; on-screen DTC description
Scan TPMS sensor ID and copy ID into MX-Sensor
Manual input OE ID into MX-sensor
Program MX-Sensor by auto creating sensor ID
Read Sensor ID by OBD and copy ID into MX-Sensor
Relearn by OBD function
Relearn procedure guide on the tool
Check Key FOB
Read TPMS live data
Tire Type/Pressure selection
Other TPMS special functions
TPMS Toolkit (other function)
Diagnostic function
Basic OBDII code reader
Read/clear codes for all electronic systems
Support all 10 test modes of the latest J1979 OBDII test specs
Enhanced OBDII Mode 6
Display live data in text, graph & analog for easy data review
Relearn parking brake pad after replacement;
Reset Steering Angle Sensor (SAS);
Reset service mileage and service intervals;
Forced regeneration and adjusting injectors;
Support battery registration and reset
Support IMMO functions
Complete diagnostic function
Tool features
Built-in rechargeable li-ion battery
Strong housing with protective rubber boot
Print TPMS sensor data via PC
Internet updatable WIFI WIFI SD card USB SD card USB USB USB
Multilingual support
Historical test records
Software Update 1 year free 1 year free free free free free free free

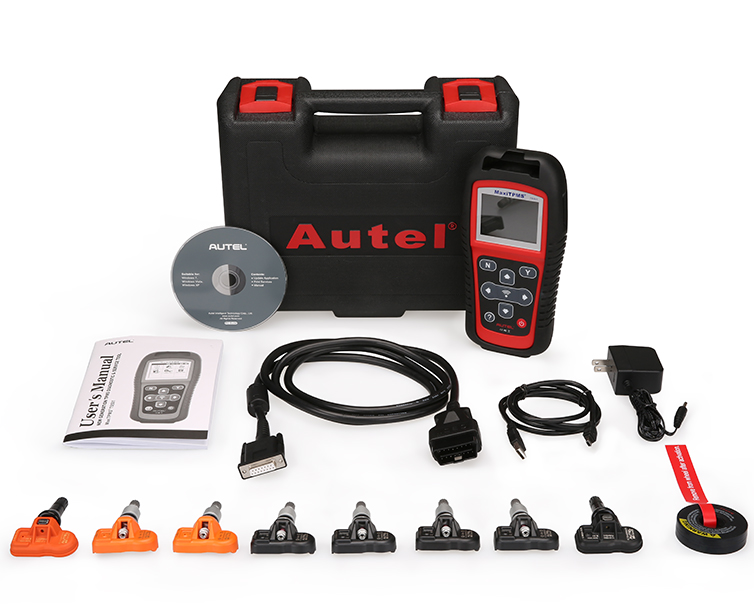

Limited one year warranty



  • User manual

  • OBD II cable

  • USB cable

  • Carry case

  • Magnet

  • Power adapter

  • SD card
