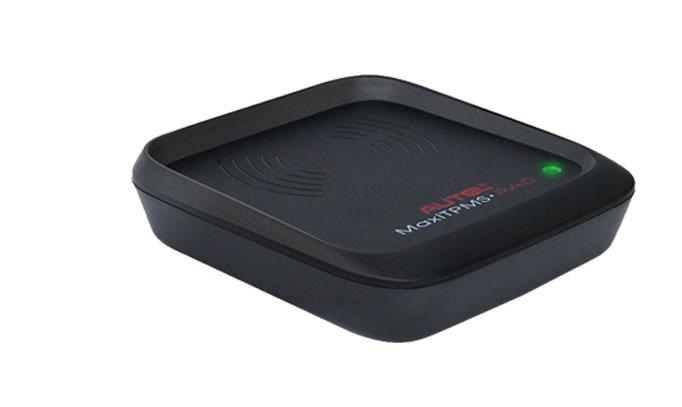

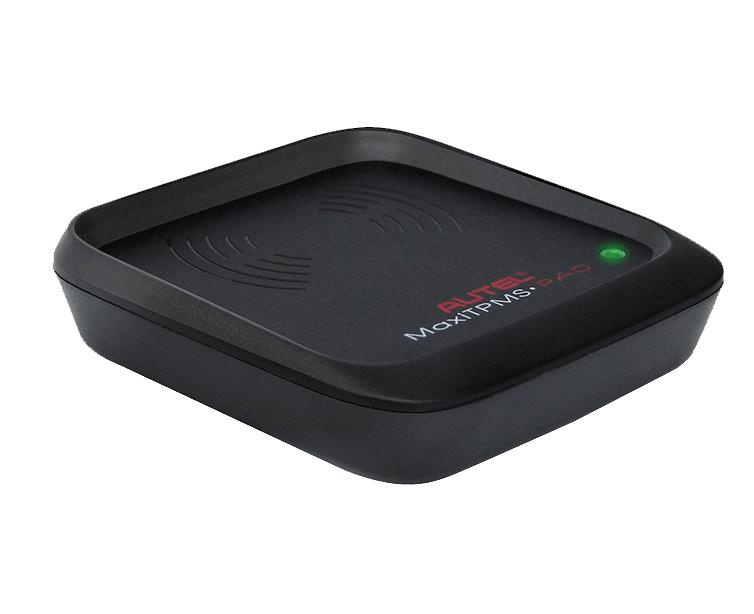

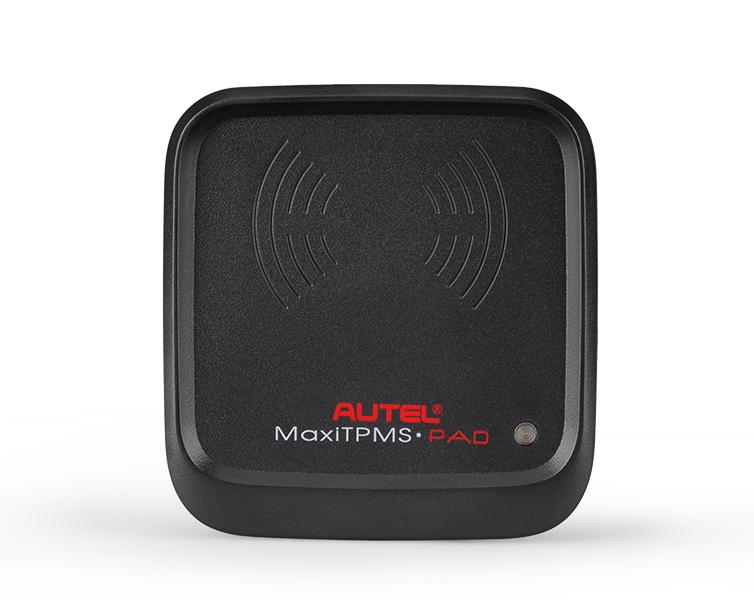

MaxiTPMS Pad

TPMS PROGRAMMING ACCESSORY DEVICE
The MaxiTPMS programming accessory device (PAD) is the perfect tool for busy shops, it frees up your TPMS activation tools for important projects. When attached to your Windows based computer, the easy-to-use MaxiTPMS Pad can test and clone the four universal Autel MX-Sensor types quickly.

PROGRAM MX-SENSORS

IN THREE EASY STEPS

1. Install the MaxiTPMS Pad software on your PC

2. Connect the MaxiTPMS Pad to your PC

3. Program Autel MX-Sensors

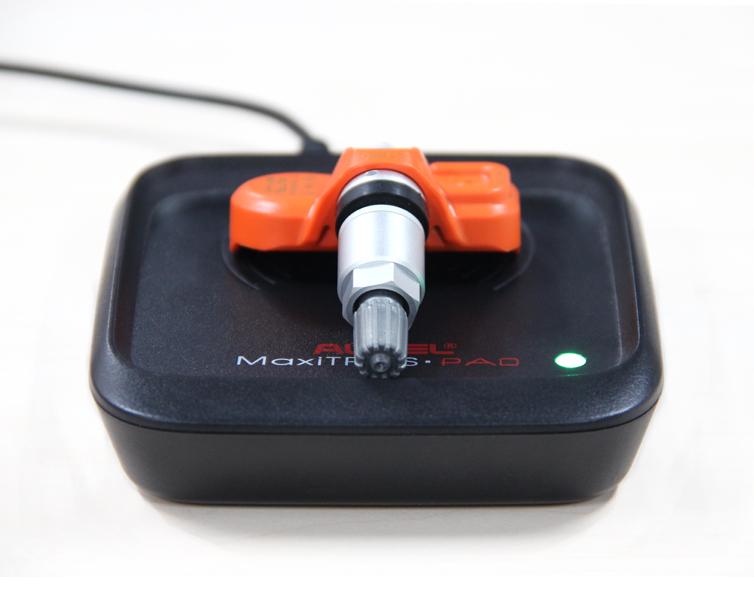

Simply place the Autel MX-Sensors on the top of the MaxiTPMS Pad for efficient multi-sensor programming.

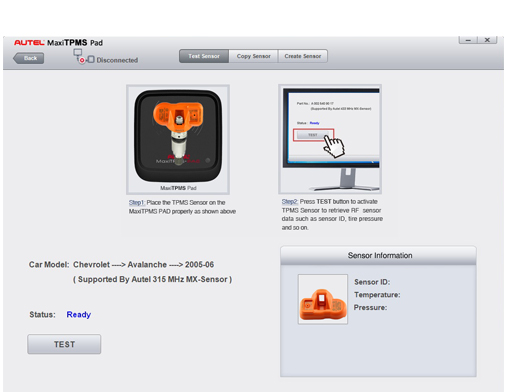

Connect MaxiTPMS PAD to A PC

TPMS senor data can be printed via PC. You can get software update for FREE!



Power 5 V / 350 mA
Storage Temperature -40°C to +150°C
Operating Temperature -40°C to +85°C
Operating Frequency 315 MHz & 433 MHz
Connectivity Mini USB 2.0 x 1; Micro USB 2.0 x 1
Dimensions (W x H x D) 98 mm x 103 mm x 24.7 mm
Weight 107.2 g
Warranty 1 year
Software Update Free



Comparison TS408(NEW) TS508(NEW) TS608(NEW) TS401 TS501 TS601 TPMS PAD MS906 TS
TPMS function
Quick Mode & Advance Mode
Activate TPMS sensors
Read sensor data
TPMS diagnose, one step for complete TPMS health check
Read/clear TPMS DTCs; on-screen DTC description
Scan TPMS sensor ID and copy ID into MX-Sensor
Manual input OE ID into MX-sensor
Program MX-Sensor by auto creating sensor ID
Read Sensor ID by OBD and copy ID into MX-Sensor
Relearn by OBD function
Relearn procedure guide on the tool
Check Key FOB
TPMS Toolkit - special TPMS functions
Diagnostic function
Basic OBDII code reader
Read/clear codes for all electronic systems
Support all 10 test modes of the latest J1979 OBDII test specs
Enhanced OBDII Mode 6
Display live data in text, graph & analog for easy data review
Relearn parking brake pad after replacement;
Reset Steering Angle Sensor (SAS);
Reset service mileage and service intervals;
Forced regeneration and adjusting injectors;
Support battery registration and reset
Support IMMO functions
Complete diagnostic function
Tool features
Built-in rechargeable li-ion battery
Strong housing with protective rubber boot
Print TPMS sensor data via PC
Internet updatable USB USB WIFI USB SD card SD card USB WIFI
Multilingual support
Historical test records
Software Update free free one year free free free free free 1 year free
Limited one year warranty



  • User manual

  • USB cable
