MaxiTPMS TBE200
MaxiTPMS TBE200
MaxiTPMS TBE200
MaxiTPMS TBE200
MaxiTPMS TBE200

MaxiTPMS TBE200

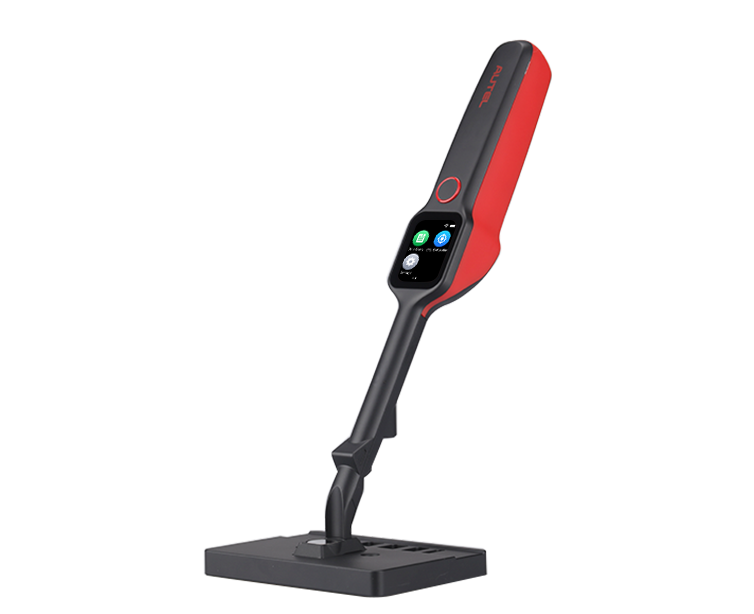

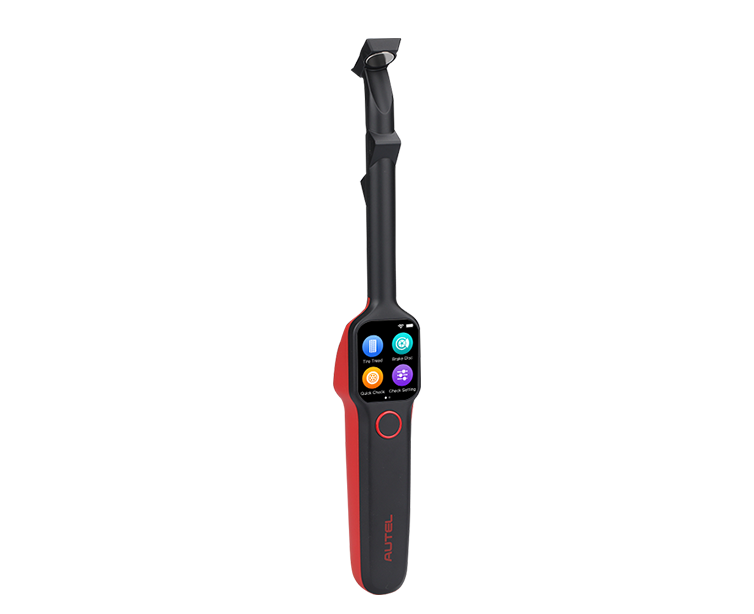

The MaxiTPMS TBE200 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED super retina touchscreen, displaying measurement data curves in real-time. TBE200 provides uneven wear analysis and detailed replacement & maintenance suggestions for quick tire service. The TBE200 dual cameras enable users to document tire wear and damage and scan Tire Identification Number (TIN). Use the tool separately, or with ITS600 to view and print detailed TPMS reports.

left right
  • MaxiTPMS TBE200
  • MaxiTPMS TBE200
  • MaxiTPMS TBE200
  • MaxiTPMS TBE200
  • MaxiTPMS TBE200

LASER MEASUREMENT

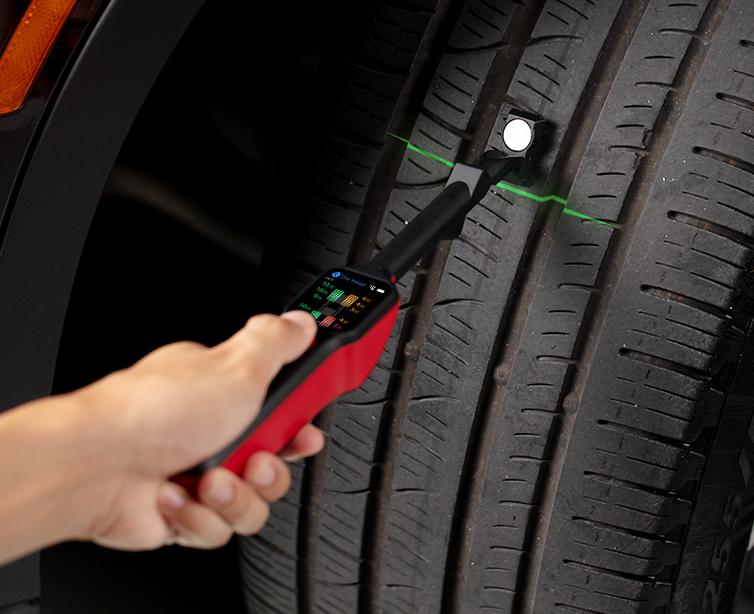

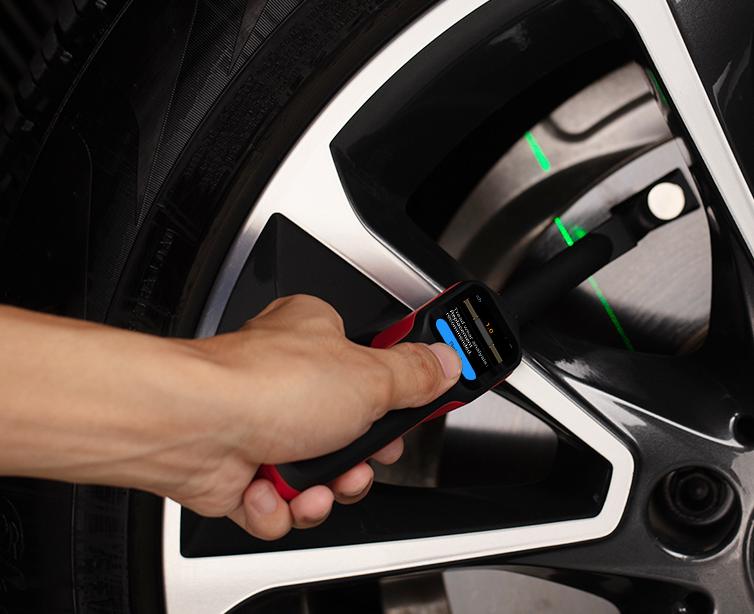

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement

• Laser measurement with 0.1mm accuracy

• Full tread measurement

• Quick Check both tread depth & brake disc

REAL-TIME TIRE HEALTH ANALYSIS

• Real-time measurement data on touchscreen

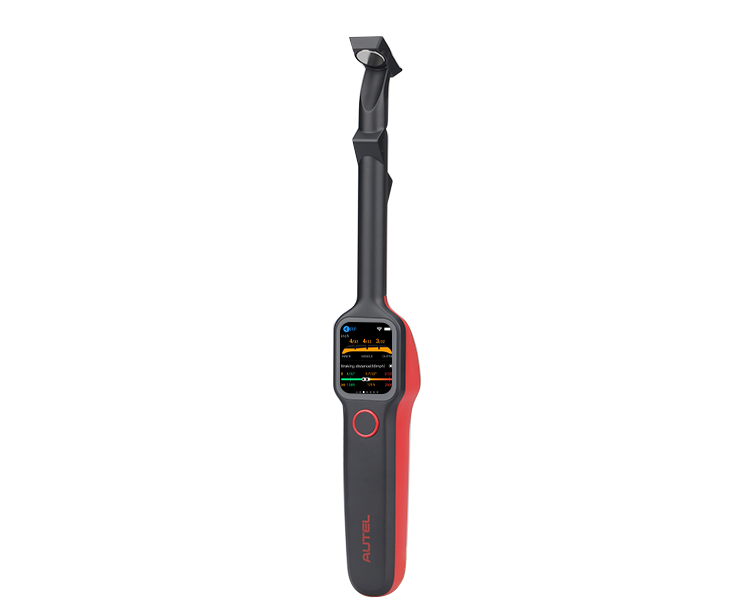

• Measurement data curve display

• Uneven wear analysis

• Test detail for single tire tread / brake disc

• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)

• Scan DOT, tire expiration notice, tire recall lookup

• Take photos of tire wear & damage

COMPREHENSIVE TEST REPORT

• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)



Recommended Use Indoor
Processor 4x ARM Cortex-A35 (1.5 GHz)
Memory 1GB RAM LPDDR3 & 4GB ROM
Display 1.65-inch AMOLED capacitive touchscreen with 348×442 resolution
Connectivity • Wi-Fi
• USB 2.0, Type C
Camera CMOS WXGA, 1 megapixel & 8 megapixel, 30fps
Audio output Output: Beep
Power and Battery • 3.7 V/3000 mAh 18650 lithium-ion battery
• Charges via 5 V AC/DC power supply
Tested Battery Life Around 8 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 300 mA (AMOLED on with default brightness) @3.7 V
Operating Temp. -10 to 45°C(14 to 113°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”)
Net Weight 188 g (0.41 lb.)
Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,
UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6



Comparison MaxiTPMS TEB 200 MaxiTPMS TEB 100
FEATURES
Tire tread depth/ brake disc wear measurement
No need to remove the wheel during measurement
Laser measurement
Measurement accuracy 0.1mm 0.1mm
Real-time measurement data on touchscreen
Measurement data curve display
Full tread measurement
Uneven wear analysis (Available when works with ITS600)
Replacement & Maintenance suggestions:
Tire replacement, brake disc replacement, tire rotation, four tire alignment
(Available when works with ITS600)
Quick Check
Test detail for single tire tread / brake disc
Comprehensive Test Report with TPMS (When works with ITS600) (When works with ITS600)
Scan DOT
Tire expiration notice
Tire recall lookup
Take photos of tire wear and damage
Compatible with Passenger cars, off-roads, commercial vehicles
Hardware
Size 283x38.9x33.5mm 277x28.7x33.5mm
Weight 188g 138.8g
Screen 1.65”AMOLED super retina touchscreen 0.95”AMOLED touchscreen
Camera 1 Megapixel, 4cm macro camera; 8 Megapixel 10cm zoomable camera 1 Megapixel, 4cm macro camera
Vibration reminder
Flash / RAM 4GB/1GB 4GB/1GB
Lithium-ion Battery 3000mAh 1300mAh



  • Main Unit

  • Calibration Table

  • Power Adapter

  • Type C USB Cable

  • Quick Reference Guide

  • Packing List

  • Carrying Case
