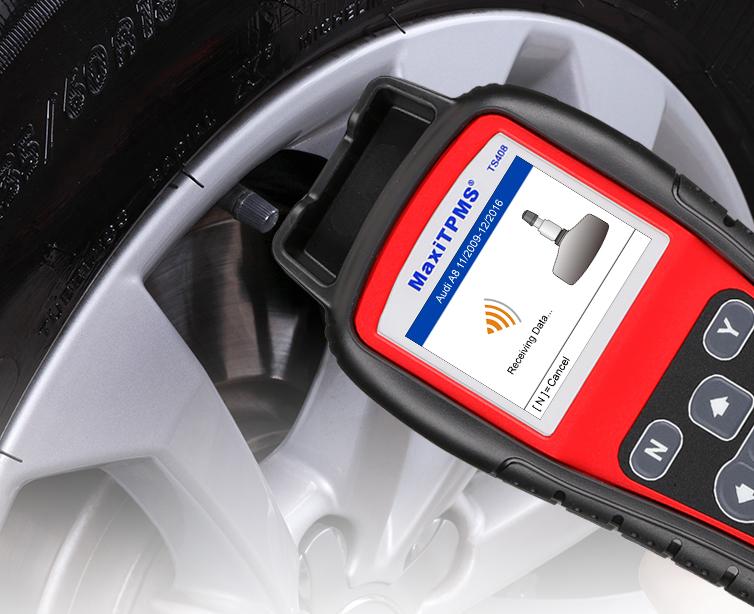

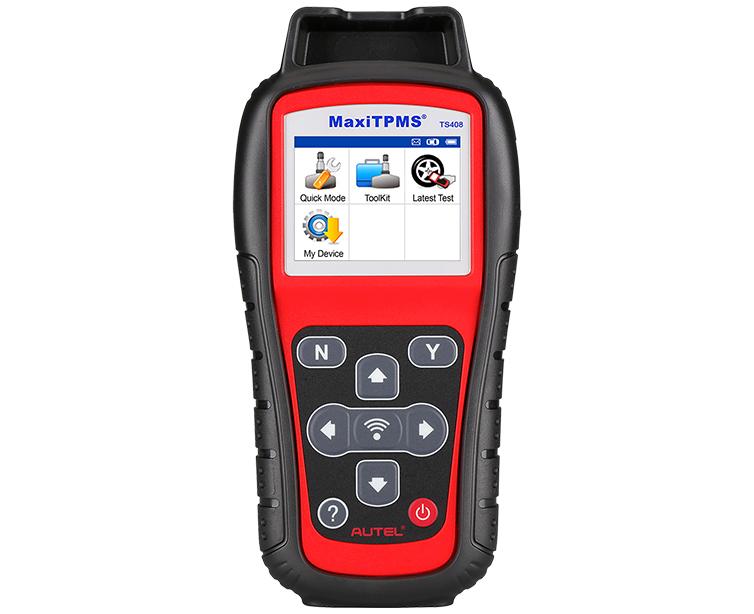

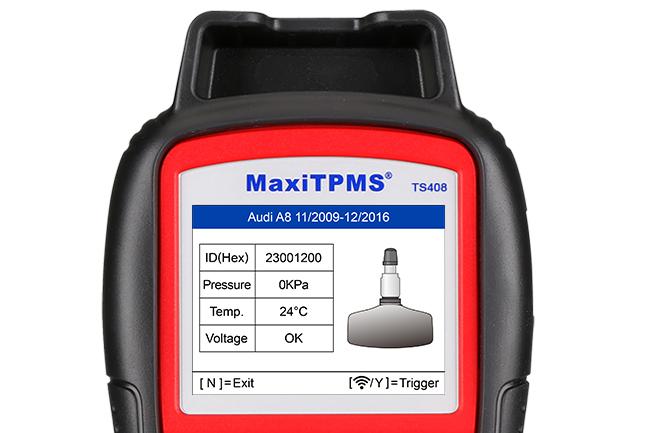

Le TS408 est conçu pour lire tous les capteurs TPMS connus. Vous choisissez la marque, le modèle et l'année du véhicule, le TS408 peut alors facilement activer tous les capteurs et lire l'ID du capteur, la pression, la température et l'état de la batterie.

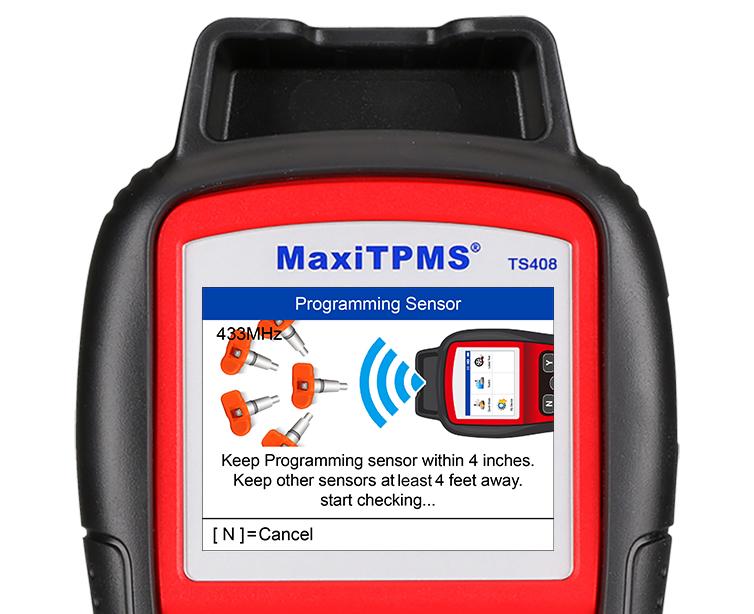

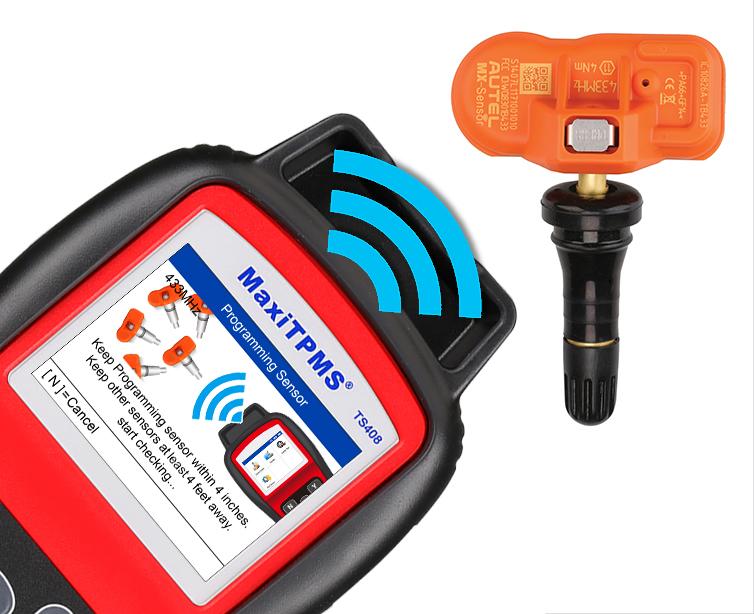

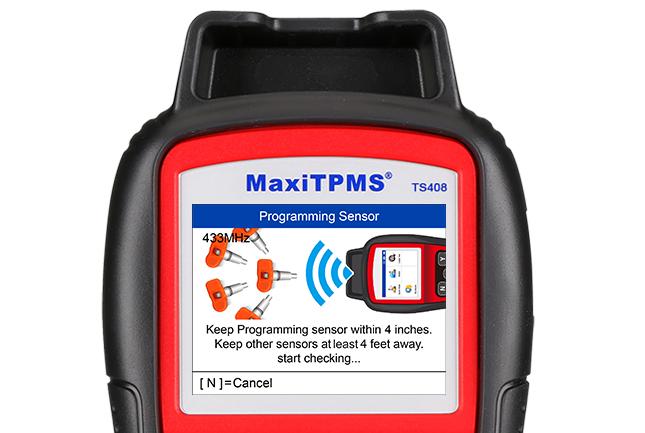

Le TS408 peut programmer un capteur AUTEL MX-Sensor avec trois options de programmation :
1. Copier par activation;
2. Copier par entrée manuelle;
3. Créer automatiquement 1-16;

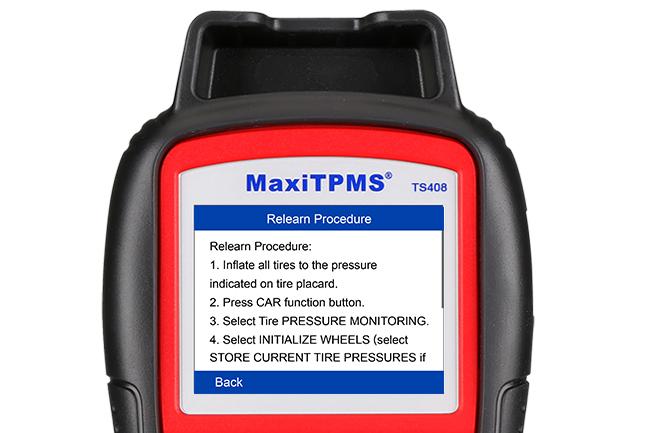

Le TS408 fournit une procédure de réapprentissage intégrée pour tout véhicule équipé de TPMS, qu'il soit américain, asiatique ou européen. Tableaux de réapprentissage ou recherches Internet sont inutiles.
Affichage | Écran couleur TFT (320x240 px) |
Alimentation | Batterie Li-polymère 3,7 V |
Température de fonctionnement | 0 °C à 50 °C (32 °F à 122 °F) |
Température de stockage | -20°C à 70°C (-4°F à 158°F) |
Dimensions | 215 mm (8,46”) x 105 mm (4,13”) x 37 mm (1,46”) |
Poids | 0,38 kg (0,84 lb) |
Comparison | TS408(NEW) | TS508(NEW) | TS608(NEW) | TS401 | TS501 | TS601 | TPMS PAD | MS906 TS |
---|---|---|---|---|---|---|---|---|
TPMS function | ||||||||
Quick Mode & Advance Mode |
![]() |
|||||||
Activate TPMS sensors |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Read sensor data |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
TPMS diagnose, one step for complete TPMS health check |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Read/clear TPMS DTCs; on-screen DTC description |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Scan TPMS sensor ID and copy ID into MX-Sensor |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Manual input OE ID into MX-sensor |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Program MX-Sensor by auto creating sensor ID |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Read Sensor ID by OBD and copy ID into MX-Sensor |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Relearn by OBD function |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Relearn procedure guide on the tool |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Check Key FOB |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
TPMS Toolkit - special TPMS functions |
![]() |
|||||||
Diagnostic function | ||||||||
Basic OBDII code reader |
![]() |
![]() |
![]() |
|||||
Read/clear codes for all electronic systems |
![]() |
![]() |
||||||
Support all 10 test modes of the latest J1979 OBDII test specs |
![]() |
![]() |
||||||
Enhanced OBDII Mode 6 |
![]() |
![]() |
||||||
Display live data in text, graph & analog for easy data review |
![]() |
![]() |
||||||
Relearn parking brake pad after replacement; |
![]() |
![]() |
||||||
Reset Steering Angle Sensor (SAS); |
![]() |
![]() |
||||||
Reset service mileage and service intervals; |
![]() |
![]() |
||||||
Forced regeneration and adjusting injectors; |
![]() |
![]() |
||||||
Support battery registration and reset |
![]() |
![]() |
||||||
Support IMMO functions |
![]() |
![]() |
||||||
Complete diagnostic function |
![]() |
|||||||
Tool features | ||||||||
Built-in rechargeable li-ion battery |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Strong housing with protective rubber boot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Print TPMS sensor data via PC |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
Internet updatable | USB | USB | WIFI | USB | SD card | SD card | USB | WIFI |
Multilingual support |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Historical test records |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Software Update | free | free | one year free | free | free | free | free | 1 year free |
Limited one year warranty |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |

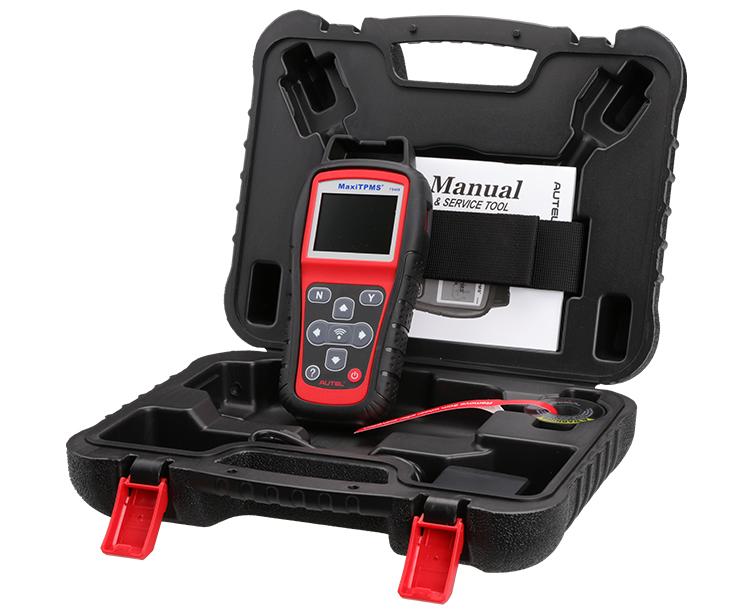

Manuel utilisateur
Adaptateur de câble USB
Mallette de transport
AC Adapter
Aimant
CD
