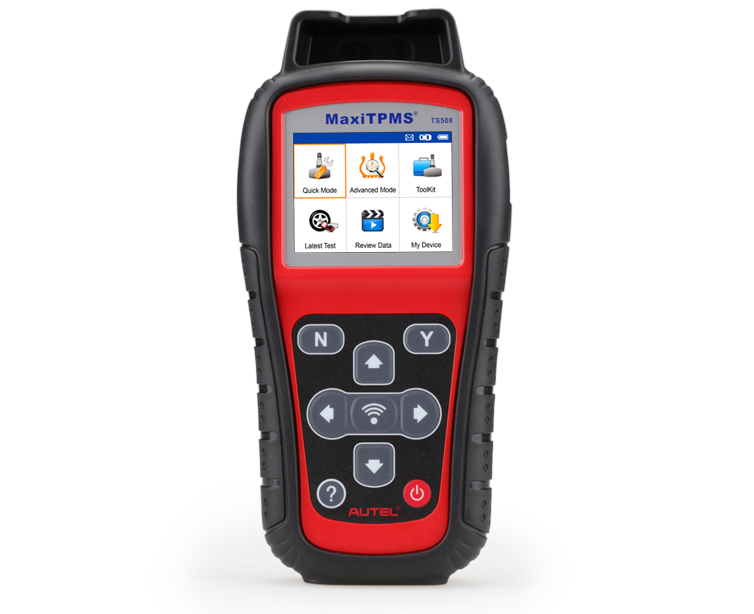

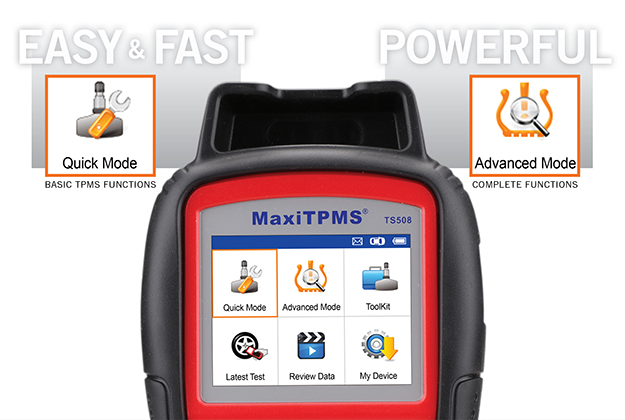

Le TS508 est un outil TPMS complet de nouvelle génération qui permet de choisir sur l'écran d'accueil l'un des deux modes de service, pour aboutir à des réparations TPMS plus rapides et plus intelligentes. Selon le type de service TPMS nécessaire, le choix du mode rapide de base ou du mode avancé complet réduira le temps de réparation.

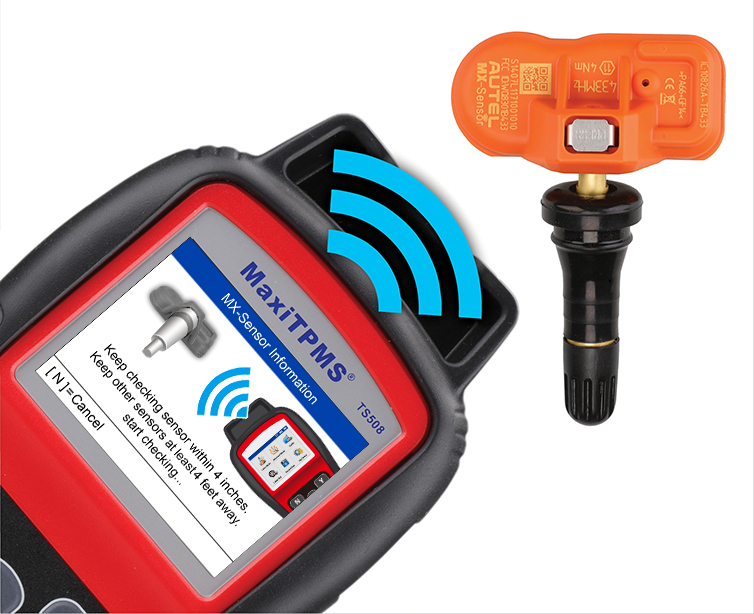

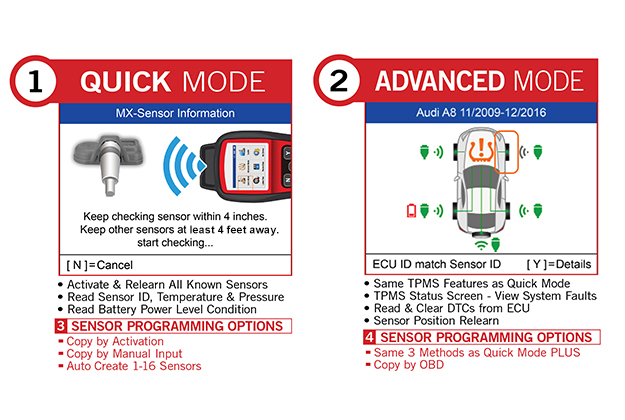

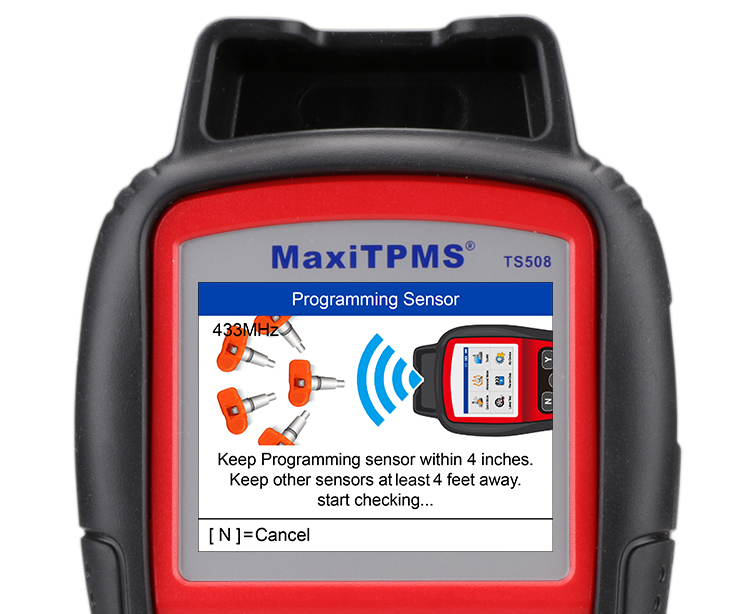

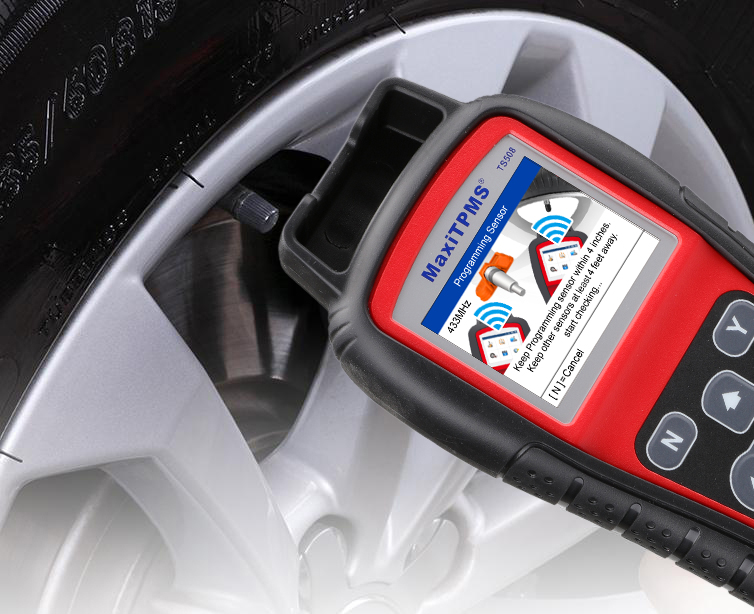

Mode TPMS rapide : fonctions TPMS de base pour vérifier les capteurs TPMS et programmer rapidement les MX-Sensors;
Mode TPMS avancé : fonctions TPMS complètes pour effectuer le contrôle des capteurs, diagnostiquer le TPMS, programmer les MX-Sensors et réapprendre les positions des capteurs.
1.Lecture de l'ID du capteur dans l'ECU;

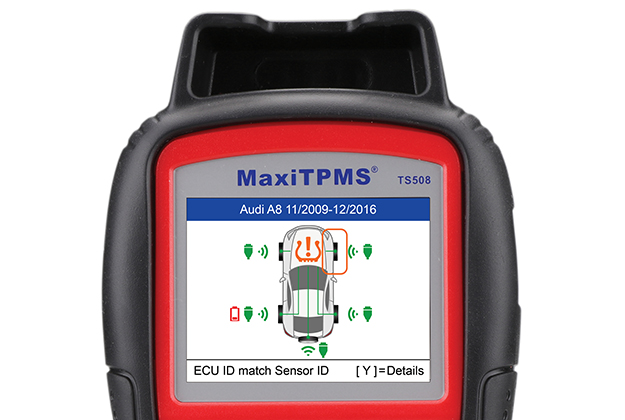

2.Contrôle de la correspondance ID capteur et ID dans l'ECU;
3.Lecture des DTC à partir de l'ECU et effacement;
4.Affichage des descriptions de détail des DTC.

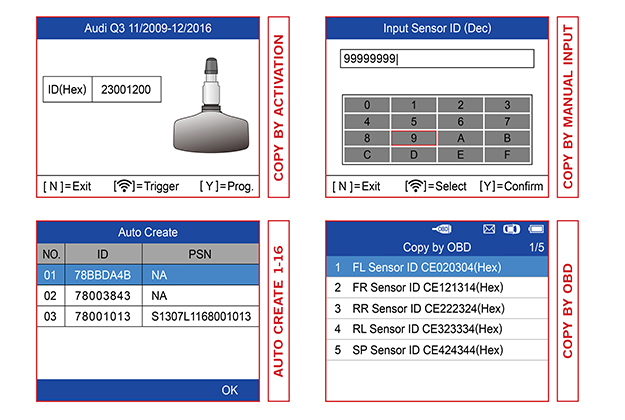

1.Copier par activation;
2.Copier par entrée manuelle;
3.Créer automatiquement 1-16;
4.Copier par OBD;
Affichage | Écran couleur TFT (320x240 px) |
Alimentation | Batterie Li-polymère 3,7 V |
Température de fonctionnement | 0 °C à 50 °C (32 °F à 122 °F) |
Température de stockage | -20 °C à 70 °C (-4 °F à 158 °F) |
Dimensions | 215 mm (8,46”) x 105 mm (4,13”) x 37 mm (1,46”) |
Poids | 0,39 kg (0,86 lb) |
Comparison | TS408(NEW) | TS508(NEW) | TS608(NEW) | TS401 | TS501 | TS601 | TPMS PAD | MS906 TS |
---|---|---|---|---|---|---|---|---|
TPMS function | ||||||||
Quick Mode & Advance Mode |
![]() |
|||||||
Activate TPMS sensors |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Read sensor data |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
TPMS diagnose, one step for complete TPMS health check |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Read/clear TPMS DTCs; on-screen DTC description |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Scan TPMS sensor ID and copy ID into MX-Sensor |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Manual input OE ID into MX-sensor |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Program MX-Sensor by auto creating sensor ID |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Read Sensor ID by OBD and copy ID into MX-Sensor |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Relearn by OBD function |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Relearn procedure guide on the tool |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Check Key FOB |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
TPMS Toolkit - special TPMS functions |
![]() |
|||||||
Diagnostic function | ||||||||
Basic OBDII code reader |
![]() |
![]() |
![]() |
|||||
Read/clear codes for all electronic systems |
![]() |
![]() |
||||||
Support all 10 test modes of the latest J1979 OBDII test specs |
![]() |
![]() |
||||||
Enhanced OBDII Mode 6 |
![]() |
![]() |
||||||
Display live data in text, graph & analog for easy data review |
![]() |
![]() |
||||||
Relearn parking brake pad after replacement; |
![]() |
![]() |
||||||
Reset Steering Angle Sensor (SAS); |
![]() |
![]() |
||||||
Reset service mileage and service intervals; |
![]() |
![]() |
||||||
Forced regeneration and adjusting injectors; |
![]() |
![]() |
||||||
Support battery registration and reset |
![]() |
![]() |
||||||
Support IMMO functions |
![]() |
![]() |
||||||
Complete diagnostic function |
![]() |
|||||||
Tool features | ||||||||
Built-in rechargeable li-ion battery |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Strong housing with protective rubber boot |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Print TPMS sensor data via PC |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
||
Internet updatable | USB | USB | WIFI | USB | SD card | SD card | USB | WIFI |
Multilingual support |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Historical test records |
![]() |
![]() |
![]() |
![]() |
![]() |
|||
Software Update | free | free | one year free | free | free | free | free | 1 year free |
Limited one year warranty |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
TS508 Introduction (US Version).pdf
TS508 Quick Guide.pdf
TS508 update instruction.pdf
TS508 Update_Maxi PC Suite_V1.12.zip
TS508 User Manual V1.00 (ES).pdf
TS508 User Manual V2.0.pdf
TS508_CN MX-Sensor V5.3X Coverage list.pdf
TS508_EU MX-Sensor V5.3X Coverage list.pdf
TS508_HK MX-Sensor V5.3X Coverage list.pdf
TS508_US MX-Sensor V5.3X Coverage list.pdf
TS508K Introduction (US Version).pdf

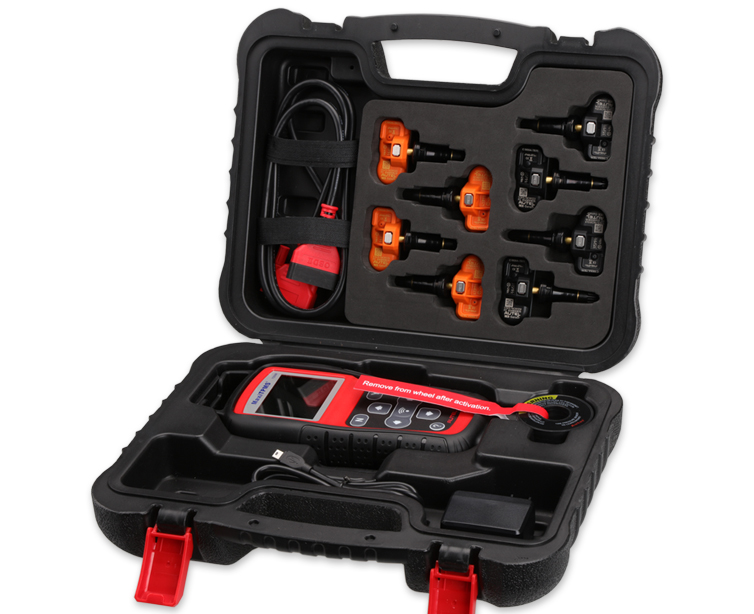

Manuel utilisateur
Câble OBDII
Câble USB
Carry case
Adaptateur CA
Aimant
CD
