MaxiTPMS ITS600/ITS600 Pro
MaxiTPMS ITS600/ITS600 Pro
MaxiTPMS ITS600/ITS600 Pro
MaxiTPMS ITS600/ITS600 Pro

MaxiTPMS ITS600/ITS600 Pro

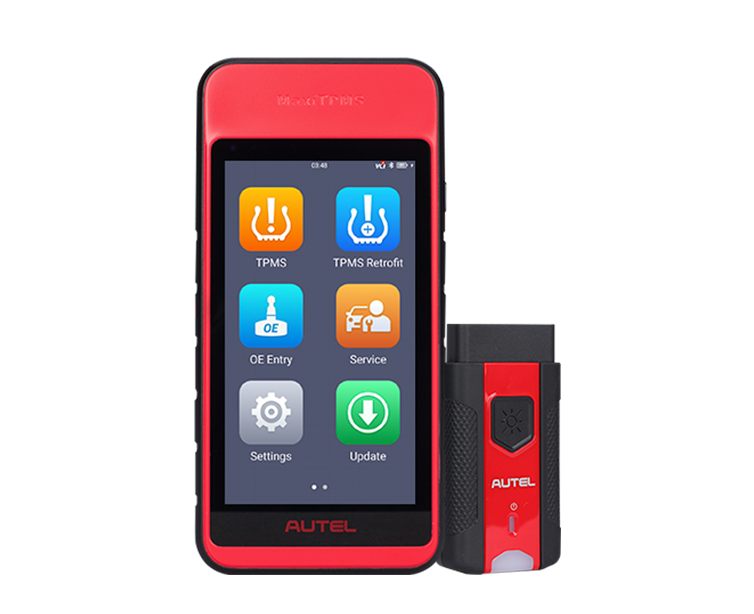

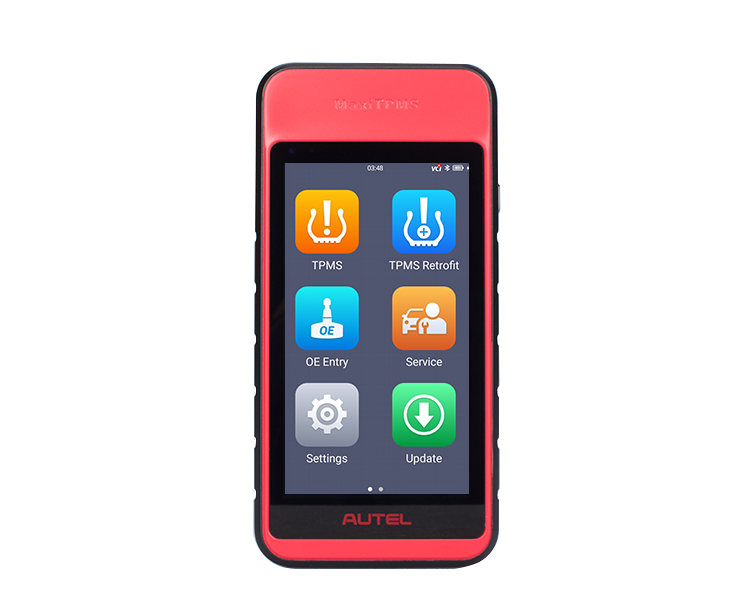

The MaxiTPMS ITS600/ITS600 Pro is a wireless, touchscreen Android-based tablet that offers complete TPMS diagnostics and service functions. The tablet features a 5.5-inch color display and Bluetooth vehicle communication interface (VCI). Compatible with U.S, Asian and European TPMS-equipped vehicles, the ITS600/ITS600 Pro features an enhanced TPMS status screen, VINscan for rapid vehicle identification, two MX-Sensor programming options, OBDII relearn functionality and onscreen relearn instructions for all vehicles. The ITS600/ITS600 Pro can activate, read and relearn all known sensors, perform TPMS system diagnostics and four common maintenance services. Additionally, it provides DOT number scan, tire expiration notice, and access to recall lookup. The ITS600/ITS600 Pro is compatible with TBE200/TBE100 Tire Tread & Brake Disc Wear Analysis tool, sold separately. By providing an extensive series of tire-related features and functions, ITS600/ITS600 Pro is your ideal choice to complete

left right
  • MaxiTPMS ITS600/ITS600 Pro
  • MaxiTPMS ITS600/ITS600 Pro
  • MaxiTPMS ITS600/ITS600 Pro
  • MaxiTPMS ITS600/ITS600 Pro

EVERYTHING TPMS SOLUTIONS

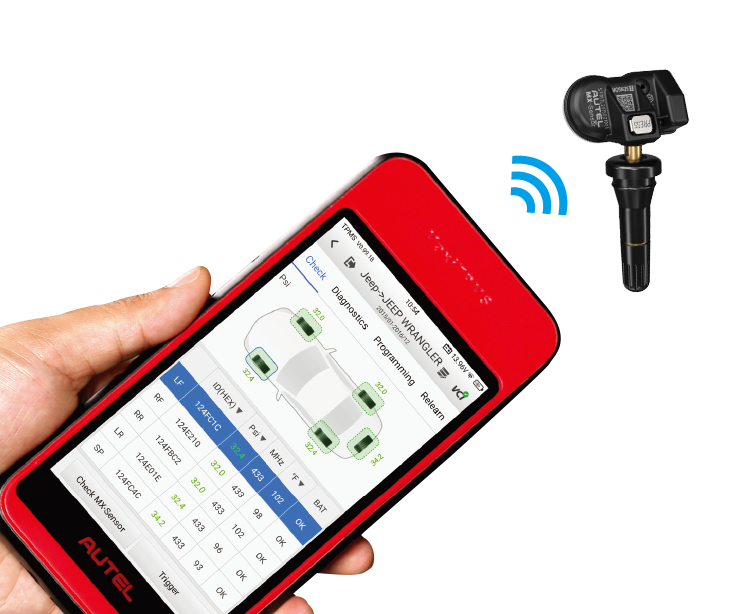

• Activates, reads and relearns all known sensors

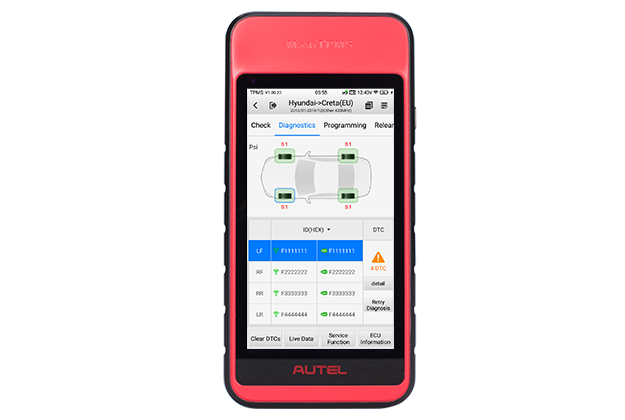

• Enhanced, at-a-glance diagnostics status screen

• Fast OBDII relearn for most vehicles

• Program MX-Sensors to replace 99% of OE sensors

• Copy By OBD sensor programming for faster service

• Two MX-Sensor program modes; batch program up to 20 MX-Sensors

• Includes wireless Bluetooth vehicle communication interface (VCI)

• Tire pressure placard value reset

• Read/Clear TPMS system codes & view live data

• Free Wi-Fi software updates for the life of the tool

QUICK VEHICLE ID TECHNOLOGY

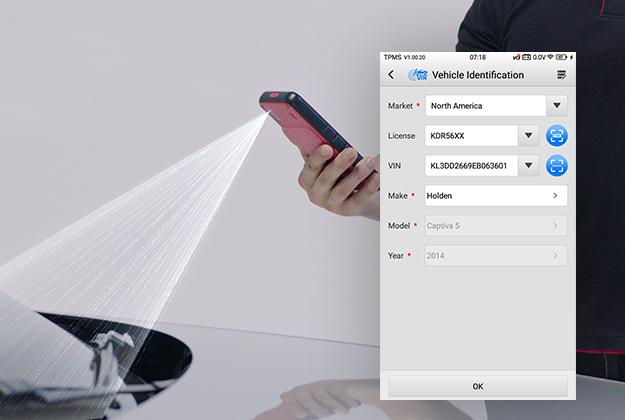

• Rapid VIN acquisition via optical VINScan

• QR Code Scan / Barcode Scan, Plate scan, Auto VIN detect and manual input

• Identify MMY and sensor OE part number via VIN decoding

DIAGNOSTICS & SERVICE

• Oil light reset

• Electronic brake service

• Battery registration

• Steering angle reset

• Included service function updates are free for the life of the tool

• All systems diagnostics and maintenance services software available with Pro Upgrade purchase

EXPANDED TIRE SERVICE


DOT

• Quick & Easy Tire DOT Number Scan

• Tire Expiration Notice

• Tire Recall Lookup

Tread Depth & Brake Disc Wear

• Precise laser measurement of tread depth & brake disc wear with purchase of Autel TBE100/TBE200

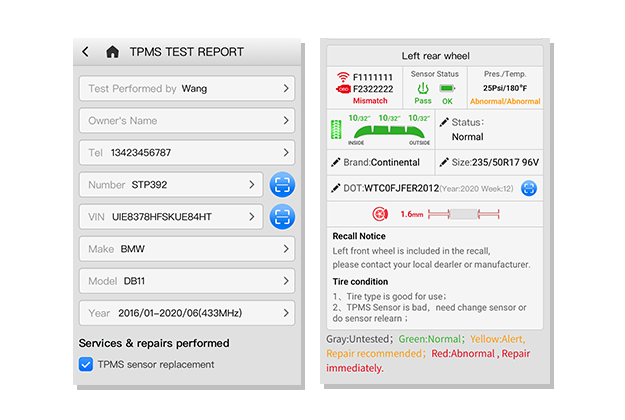

• Comprehensive Test Report: TPMS health‚ Tread depth & brake disc wear characteristics & Repair tips



Recommended Use Indoor
Operating System Android™ 9.0
Processor Quad-core processor (1.5 GHz)
Memory 2GB RAM DDR4 & 64GB ROM
Display 5.5-inch LCD capacitive touchscreen with 1280x720 resolution
Connectivity • Wi-Fi
• USB 2.0, Type C
• BT
Sensors Light sensor for brightness auto adjust
Audio input/output Input: N/A
Output: Beep
Power and Battery • 3.8 V/5000 mAh lithium-polymer battery
• Charges via 5 V AC/DC power supply
Battery Charging Input 5 V/2 A
Power Consumption 600 mA (LCD on with default brightness, Wi-Fi on) @3.8 V
Operating Temp. -10 to 45°C(14 to 113°F)
Storage Temp. -20 to 60°C (-4 to 140°F)
Dimensions (W x H x D) 183.0 mm (7.2”) x 89.0 mm (3.5”) x 22.0 mm (0.87”)
Net Weight 368 g (0.8 lb.)
Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code,
SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed,
Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,
GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.66



Comparison ITS600 TS608 TS508-WF TS508
TPMS & TIRE SERVICE
Worldwide Vehicle Coverage 99%, Always Up-to-date
Easy Vehicle Identification (AutoVIN, VINscan, QR code/Barcode scan, Plate Scan, Manually select/input) (AutoVIN, Manually select/input) (Manually select) (Manually select)
Activate, Read, Relearn All Known TPMS Sensors
Two Programming Options
Autel Sensor Batch Programming (Up to 20 sensors) (Up to 16 sensors) (Up to 16 sensors) (Up to 16 sensors)
OBDII Relearn / Automatic Relearn / Stationary Relearn
Relearn Procedure Guide
Exclusive TPMS Status Screen
Indicate sensor OE part number
Check MX-Sensor Information (ID, Battery, etc.)
Tire Pressure Placard Value Reset
Unlock TPMS ECU for old Toyota/Lexus, Integrated into OBD relearn
Test Remote Key Entry (RKE)
Read/Clear Codes for TPMS System
Special Functions (e.g. View Live Data for TPMS System)
DOT Scan, Tire Expiration Notice, Tire Recall Lookup (Coming soon with Autel-cloud based app)
Test Report (View on PC) (View on PC)
TPMS Software Update Free Update Annual Update Fee Free Update Free Update
DIAGNOSTICS
All System Diagnostics & All Maintenance Service Free OLS, SAS, BMS, EPB;
Optional purchase of Pro Upgrade for All System Diagnostics & All Maintenance Service

Diagnostic Software Update All System Diagnostics and Services updates is FREE for 1 Year with Pro Upgrade purchase.
New software updates for these features will require a new ITS600 Pro Upgrade purchase.
Annual Update Fee
SOFEWARE
OPERATING SYSTEM Android 9.0 Android 4.4
HARDWARE
Display 5.5 inch TFT LCD-touch, 1280x720 7 inch TFT LCD-touch, 1024x600 2.8 inch TFT LCD, 320×240 2.8 inch TFT LCD, 320×240
Camera 8 MP
Flash / RAM / SD 64GB / 1G; SD card up to 64G (Optional) 32G / 1G; SD card up to 32G (Optional) 16M / 3M 16M / 3M
Lithium-ion Battery 3.8V/5000mAh 3.7V/5000mAh 3.7V/3200mAh 3.7V/3200mAh
Vibration reminder, Microphone voice remote assistance
ACCESSORIES
Tread Depth & Brake Disc Wear Examiner TBE200 / TBE100 (Sold separately)
Thermal printer (Sold separately)

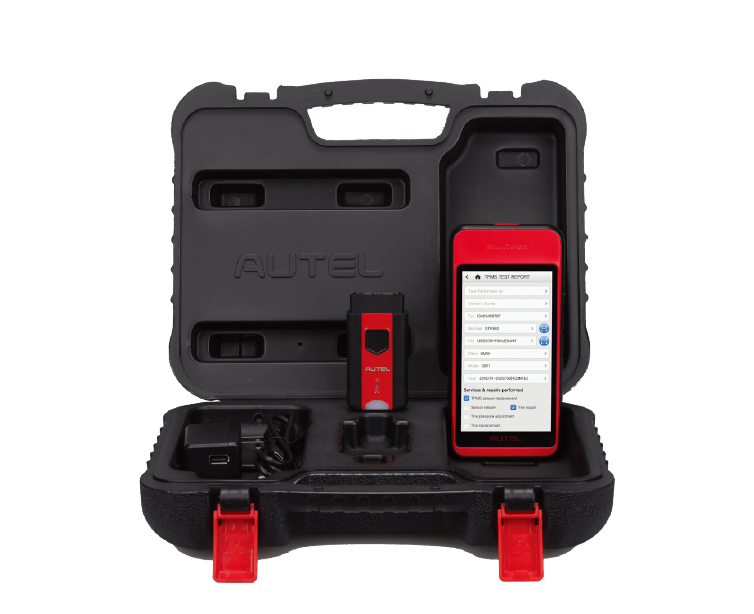

  • Main Unit

  • MaxiVCI V200

  • Power Adapter

  • Type C USB Cable


  • Hex Key

  • Quick Reference Guide

  • Packing List

  • Carrying Case
