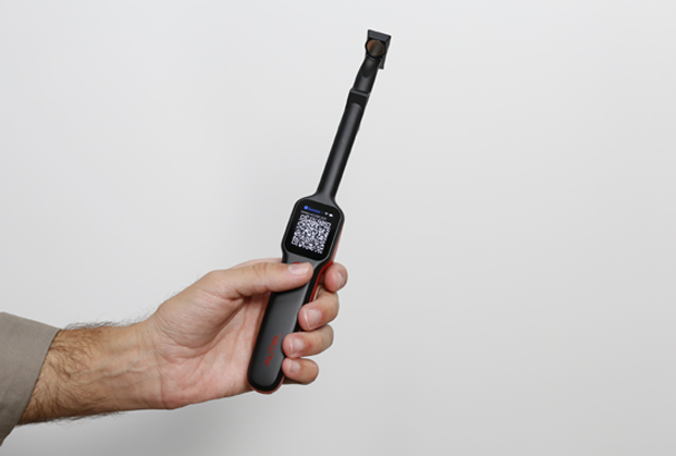

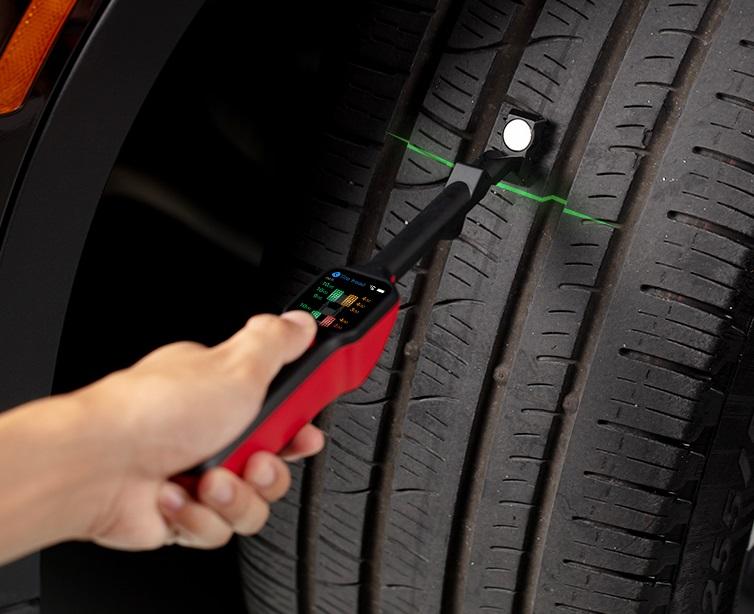

The MaxiTPMS TBE100 is a laser-enabled tire tread depth & brake disc wear examiner that provides users with quick and accurate wear measurements. Measure brake disc wear without having to remove tires. It features a 1.65” AMOLED touchscreen, displaying measurement data in real-time. TBE100 can work with MaxiTPMS ITS600 tablets to access detailed replacement & maintenance suggestions for quick tire service, document tire wear and damage. Use the tool separately, or with ITS600 to view and print detailed reports.

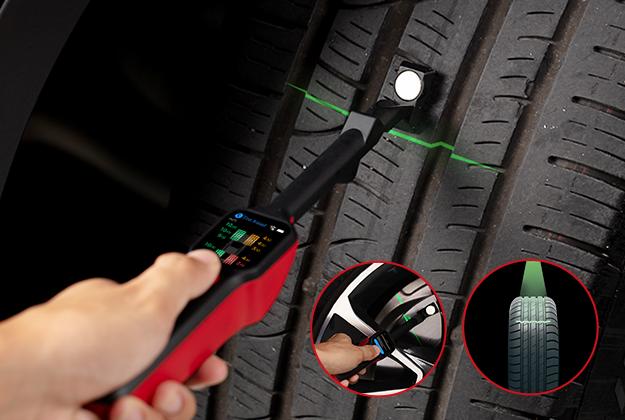

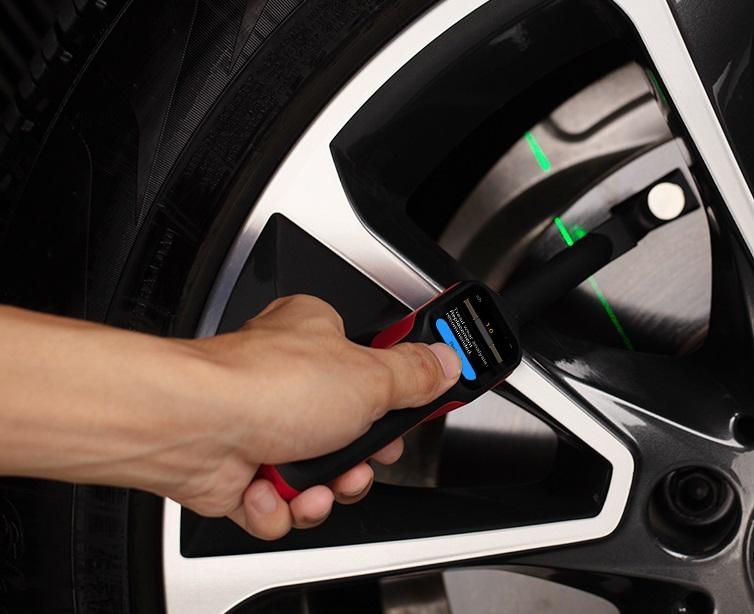

• Tire tread depth & brake disc wear check in one tool, no need to remove the wheel during measurement
• Laser measurement with 0.1mm accuracy
• Single tread and full tread measurement
• Quick Check both tread depth & brake disc

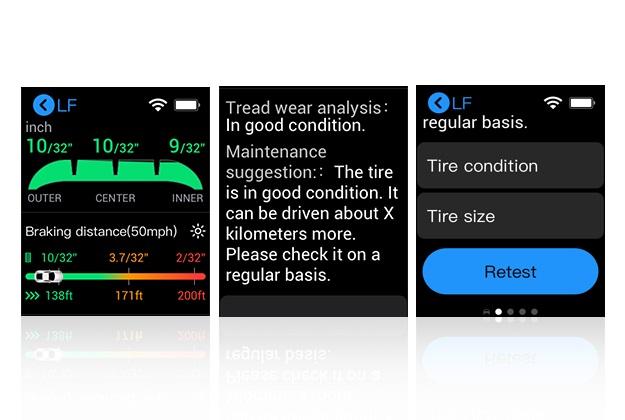

• Real-time measurement data on touchscreen
• Measurement data curve display
• Uneven wear analysis
• Test detail for tire tread / brake disc
• Detailed replacement & maintenance suggestions (tire/brake disc replacement, tire rotation/alignment servicing)

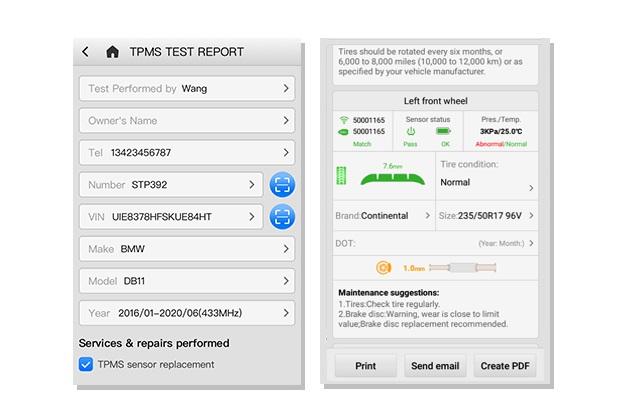

• Comprehensive Test Report: TPMS health, Tire tread depth & brake disc wear characteristics & Repair tips (Requires ITS600)
• Generate QR codes for tire tread depth and brake disc measurements to allow for easy report sharing & download via mobile phones or tablets.
| Recommended Use | Indoor |
| Processor | 4x ARM Cortex-A35 (1.5 GHz) |
| Memory | 1GB RAM & 4GB ROM |
| Display | 1.65-inch AMOLED capacitive touchscreen with 348x442 resolution |
| Connectivity |
• Wi-Fi • Type C |
| Camera | 1 megapixel |
| Audio output | Output: Beep |
| Power and Battery |
• 3.7 V/3000 mAh 18650 lithium-ion battery • Charges via 5 V AC/DC power supply |
| Battery Charging Input | 5 V/1.5 A |
| Power Consumption | 300 mA (AMOLED on with default brightness) @3.7 V |
| Operating Temp. | -10 to 45°C(14 to 113°F) |
| Storage Temp. | -20 to 60°C (-4 to 140°F) |
| Dimensions (W x H x D) | 283.0 mm (11.14”) x 39.0 mm (1.54”) x 33.5 mm (1.32”) |
| Net Weight | 186 g (0.41 lb.) |
| Comparison | MaxiTPMS TEB 200 | MaxiTPMS TEB 100 |
|---|---|---|
| FEATURES | ||
| Tire tread depth/ brake disc wear measurement |
 |
|
| No need to remove the wheel during measurement |
|
|
| Laser measurement |
|
|
| Measurement accuracy | 0.1mm | 0.1mm |
| Real-time measurement data on touchscreen |
|
|
| Measurement data curve display |
|
|
| Full tread measurement |
|
|
| Uneven wear analysis |
|
|
|
Replacement & Maintenance suggestions: Tire replacement, brake disc replacement, tire rotation, four tire alignment |
|
|
| Quick Check |
|
|
| Test detail for single tire tread / brake disc |
|
|
| Comprehensive Test Report with TPMS |
(When works with ITS600) |
(When works with ITS600) |
| Scan DOT |
|
|
| Tire expiration notice |
|
|
| Tire recall lookup |
|
|
| Take photos of tire wear and damage |
|
|
| Compatible with Passenger cars, off-roads, commercial vehicles |
|
|
| Hardware | ||
| Size | 283x38.9x33.5mm | 283x38.9x33.5mm |
| Screen | 1.65”AMOLED super retina touchscreen | 1.65”AMOLED super retina touchscreen |
| Camera | 1 Megapixel, 4cm macro camera; 8 Megapixel 10cm zoomable camera | 1 Megapixel macro camera |
| Vibration reminder |
|
|
| Flash / RAM | 4GB/1GB | 4GB/1GB |
| Lithium-ion Battery | 3000mAh | 3000mAh |

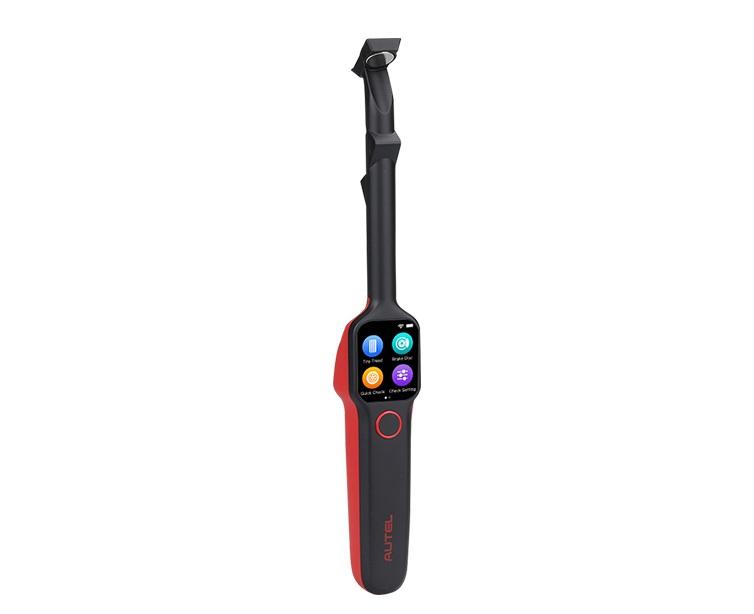

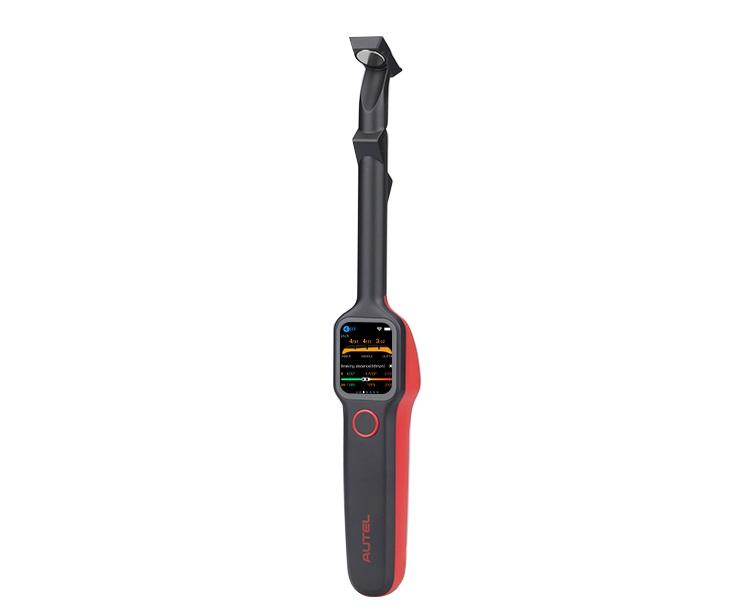

Main Unit

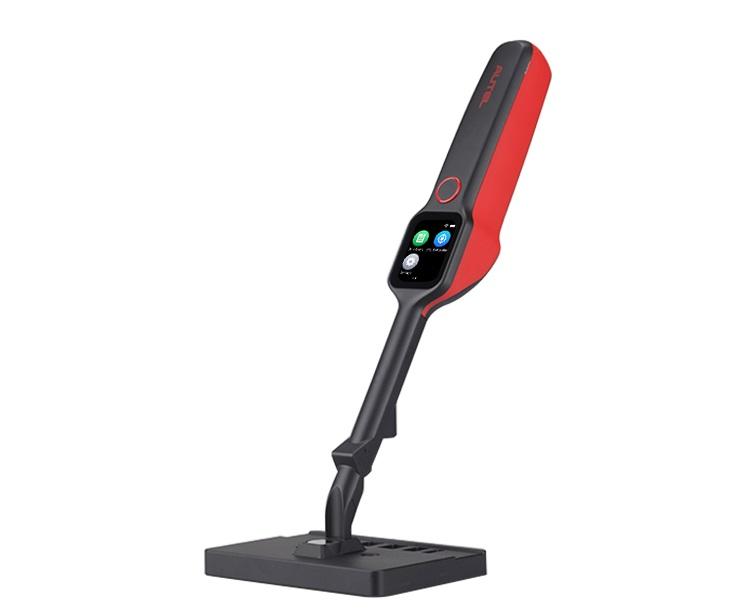

Calibration Table
Power Adapter
Type C USB Cable
Quick Reference Guide
Packing List
Carrying Case
