433MHz PL (Designed for Europe)
433MHz PL (Designed for Europe)
433MHz PL (Designed for Europe)
433MHz PL (Designed for Europe)

433MHz PL (Designed for Europe)

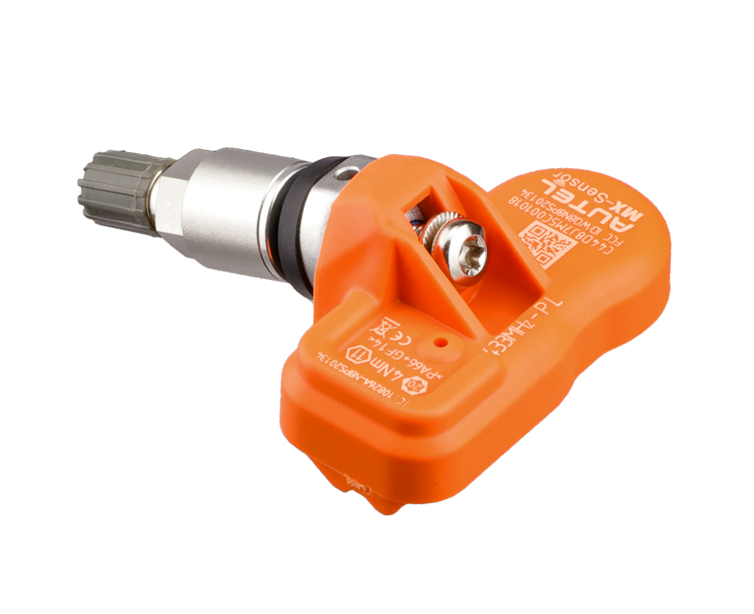

PRE-PROGRAMMED AND PROGRAMMABLE UNIVERSAL TPMS SENSOR
Angle Adjustable 433MHz PL
Autel 433MHz PL is pre-programmed for the majority of European vehicles and re-programmable with the latest industry vehicle coverage. Built to match or exceed OEM sensors in frequency strength and durability, 433MHz PL is 100% re-programmable and offers the latest model vehicle coverage because they quickly update with an Autel wireless programming tool.

left right
  • 433MHz PL (Designed for Europe)
  • 433MHz PL (Designed for Europe)
  • 433MHz PL (Designed for Europe)
  • 433MHz PL (Designed for Europe)

PRE-PROGRAMMED, FIT AND GO

An easy to use and cost effective necessity for any shop performing TPMS repairs, the Autel 433MHz PL is pre-programmed for selected vehicle brands to eliminate the need to program the hundreds or thousands of sensors to fulfill shop orders. On the shop level, using the Fit-And-Go solution means lower cost and higher install efficiency.

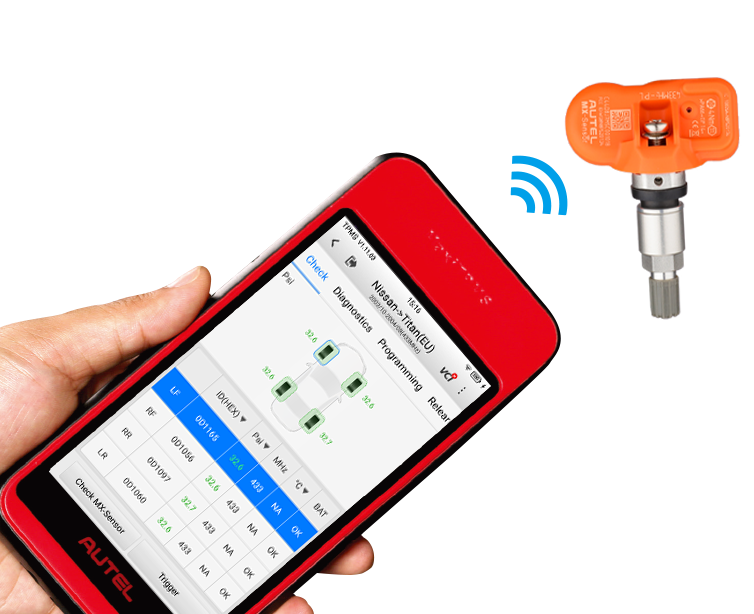

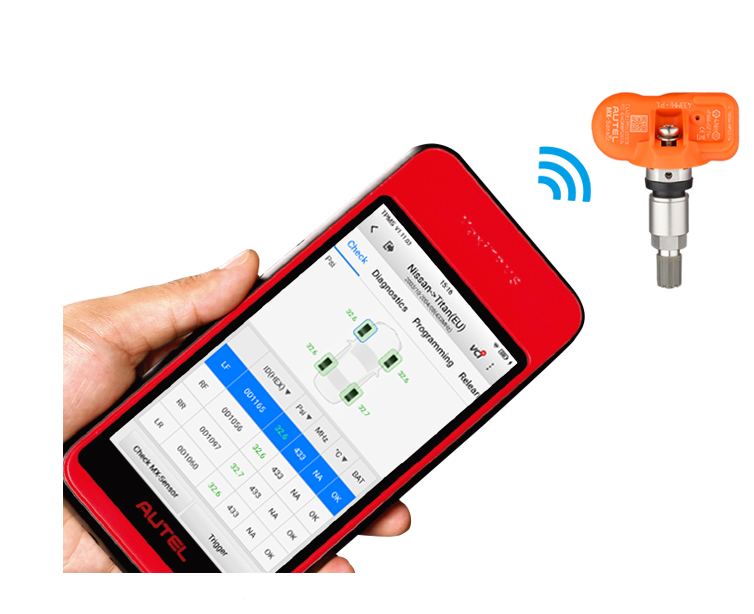

MAXIMUM SIGNAL STRENGTH WIRELESS PROGRAMMING

The extraordinary sensor signal strength allows Autel 433MHz PL to be easily programmed wirelessly even when the sensors have already been mounted to the wheel. And with strong signal strength, now up to 20 sensors can be programmed in one session with Autel ITS600. Autel 433MHz PL is 100% clone-able. No relearn is required when the 433MHz PL is cloned with the original sensor ID and put in the same position.

SUPERIOR BATTERY RELIABILITY

With the highest quality materials and advanced TPMS technology, Autel 433MHz PL provides superior battery life and reliability, to match OE sensor battery performance, ensuring longer replacement terms and greater replacement value.

SAE TESTED & CERTIFIED STRICT QUALITY CONTROL

Autel high-quality MX-Sensor is tested and certified to meet SAE industry standard J2657 testing. AUTEL guarantees 433MHz PL are free from manufacturing defects for a period of 24 months or 40.000 Km whichever comes first. Each Autel 433MHz PL has a series number for assuring quality control. The series number is imprinted on the sensor or can be read with Autel TPMS tools. With the series number, Autel can track the sensor quality from our factory manufacturing to ensure only the highest quality parts are installed.



Battery Life 4 years
Operating Temperature -40°C to +125°C
Storage Temperature -40°C to +125°C (recommended ≤35°C)
Operating Humidity ≤90%
Operating Frequency 433 MHz
Pressure Monitoring Range 0 to 800 kPa
Pressure Reading Accuracy ±10 kPa
Temperature Reading Range -40°C to +125°C
Temperature Reading Accuracy ±5°C
G Sensor Reading Accuracy ±15%
Transmission Power 5-8 dBm
Battery 3.0 V
Dimensions (W x H x D) 51.9 mm x 29.0 mm x 22.2 mm
Weight (Without Valve) 16.5 g
