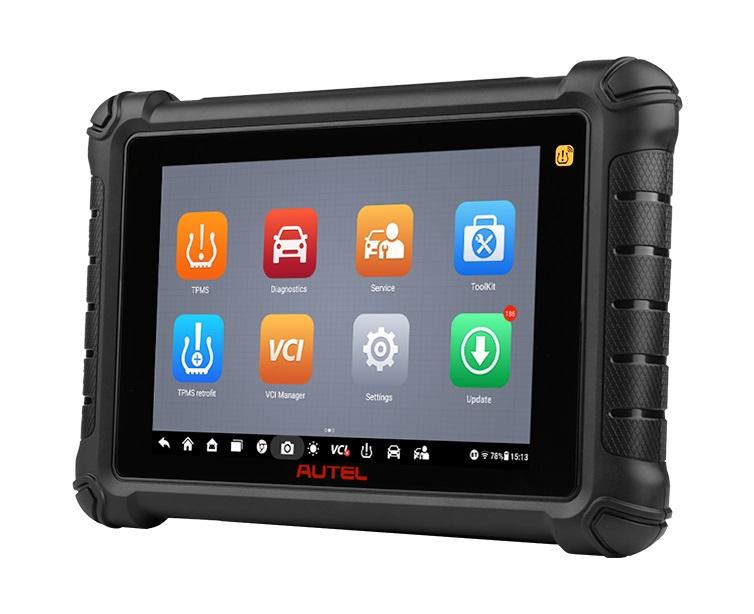

The TS900 offers advanced diagnostics, comprehensive TPMS, and an extensive one-touch service menu. The MaxiTPMS TS900 is an 8-inch TPMS, Diagnostics and Service, touchscreen tablet. The TS900 can activate, read and relearn all known TPMS sensors, including Tesla OE sensors, and program the Autel 1-Sensor to replace 99 percent of the TPMS sensors on the road today. The TS900 is also compatible with the Autel Bluetooth-TPMS sensors (BLE-A001), preprogrammed for Tesla models and programmable for BLE-equipped vehicles. Diagnostic functions include all systems Pre/Post Scans, bi-directional Active Tests, and Special Functions. Quickly execute 38-plus service functions. TS900 offers an advanced processor, 4GB operating memory, and 64 GB storage memory and runs on Android 11.
• Comprehensive coverage for TPMS
• Program AUTEL MX-Sensors to replace 99% of TPMS sensors on the vehicles on the road today.
• Industry-leading Relearn-by-OBD vehicle coverage.
• Compatible with 315MHz, 433/434MHz and 2.4GHz (BLE) frequency TPMS sensors.
• Cover U.S., European, and Asian vehicles, 1996 and newer to provide professional diagnostic service.
• Support all system diagnostics (including Read and Erase codes, View Freeze Frame data, View and Graph Live Data, and Perform bi-directional Active Tests and Special Functions).
• Extensive Service Menu with direct access to over 38+ maintenance services.
• Supports the latest communication protocols, including CAN FD/DoIP.
• Generate Detailed Pre- and Post-Scan Reports. Cloud-based Report Management allows you to view, save, print, and share reports on mobile phones, tablets, and computer browsers.
• Auto-VIN technology automatically identifies vehicle make, model, and year.
• 8-inch touchscreen with 1024 x 600 resolution display and 8-megapixel rear camera.
• 64GB onboard memory for fast processing and access to the software.
• Android 11 operating system for fast boot-up and operation speed.
| Item | Description | |
| Tablet | Recommended Use | Indoor |
| Operating System | AndroidTM 11 | |
| Processor | Quad-Core (1.8 GHz) | |
| Memory | 4 GB RAM & 64 GB ROM | |
| Display | 8-inch LCD screen with 1280 x 800 resolution | |
| Rear Camera | 8 MP | |
| Connectivity |
• Wi-Fi |
|
| Sensors | Ambient light sensor for brightness auto changing | |
| Audio input/output |
Input: N/A Output: buzzer |
|
| Power and Battery |
• 3.7 V/7700 mAh lithium-polymer battery • Charges via 5 V DC power supply |
|
| Tested Battery Life | Around 7 hours of continuous use | |
| Battery Charging Input | 5 V/3 A | |
| Power Consumption | Approx. 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V | |
| Operating Temp. | 0 to 50 °C (32 to 122 °F) | |
| Storage Temp. | -10 to 60 °C (14 to 140 °F) | |
| Operating Humidity | 5% to 95% non-condensing | |
| Dimensions (W x H x D) | 1259.87 mm (10.23”) x 168.98 mm (6.65”) x 33.60 mm (1.32”) | |
| Net Weight | 998 g (2.2 lbs) | |
| Protocols |
ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CAN FD |
|
| V150 | Communication | BR + EDR |
| Wireless Frequency | 2.4 GHz | |
| Input Voltage Range | 8 to 30 V DC | |
| Supply Current | 150 mA @ 12 V DC | |
| Operating Temp. | 0 to 50 °C (32 to 122 °F) | |
| Storage Temp. | –10 to 60 °C (14 to 140 °F) | |
| Dimensions (L x W x H) | 77.47 x 46.8 x 21.38 mm (3.05” x 1.84” x 0.84”) | |
| Weight | 51.5 g (0.11 lbs) | |
| MaxiTPMS TS900 | MaxiTPMS TS608 | MaxiTPMS ITS600/ ITS600 PRO | MaxiTPMS TS508WF | |
| TPMS Function | ||||
| Easy Vehicle Identification | Auto-VIN/ Auto-Scan/ Plate Scan/ Image Scan/ Manually Select&Input | Auto-VIN/ Auto-Scan/ Manually Select&Input | Auto-VIN/ Auto-Scan/ Plate Scan/ Image Scan/ Manually Select&Input | Manually Select |
| Active&Programming&Relearn BLE TPMS Sensors | √ | × | √ | × |
| Active&Programming&Relearn RF(315/ 433MHz) TPMS Sensors | √ | √ | √ | √ |
| TPMS Diagnostics | Enhanced TPMS status screen | Enhanced TPMS status screen | Enhanced TPMS status screen | TPMS status screen |
| Relearn Procedure | 4 Methods | 4 Methods | 4 Methods | 4 Methods |
| Autel RF TPMS Sensor Batch Programming | Up to 20 Sensors | Up to 16 Sensors | Up to 20 Sensors | Up to 16 Sensors |
| Programming Methods |
2 Methods MX-Sensors Only |
2 Methods MX-Sensors Only |
2 Methods MX-Sensors Only |
2 Methods MX-Sensors Only |
| Check MX-Sensor Information (ID, Battery, etc.) | √ | √ | √ | √ |
| Tire Pressure Placard Value Reset | √ | √ | √ | √ |
| Read/Clear Codes for TPMS System | √ | √ | √ | √ |
| Test Report | √ | √ | √ | View On PC |
| Diagnostic function | ||||
| All System Diagnostics | √ | √ |
ITS600: OLS, SAS, BMS, EPB ITS600 PRO: All System Diagnostics |
/ |
| All Maintenance Service | 38+ Service Functions | 36 Service Functions |
ITS600: 4 Service Functions ITS600 PRO: 36 Service Functions |
/ |
| Battery Analysis | × | × | √ | × |
| Hardware | ||||
| Connection | Bluetooth VCI-150 | Bluetooth MaxiVCI-Mini | Bluetooth VCI-200 | OBD II Cable |
| Screen |
8-inch Touchscreen 1280*800 Pixel |
7-inch Touchscreen 1024*600 Pixel |
5.5-inch Touchscreen 1280*720 Pixel |
2.8-inch Display 320*240 Pixel |
| Battery | 7700mAh | 5000mAh | 5000mAh | 3000mAh |
| Processor | Quad-Core (1.8 GHz) | Quad-Core (1.6 GHz) | Quad-Core (1.5 GHz) | / |
| Memory | 64G ROM/ 4G RAM | 64GB ROM / 1GB RAM | 64GB ROM / 1GB RAM | / |
| Camera | 8.0MP | / | 8.0MP | / |
| Software | ||||
| Operation system | Android 11 | Android 4.4.2 | Android 9.0 | Easy Tool Navigation |

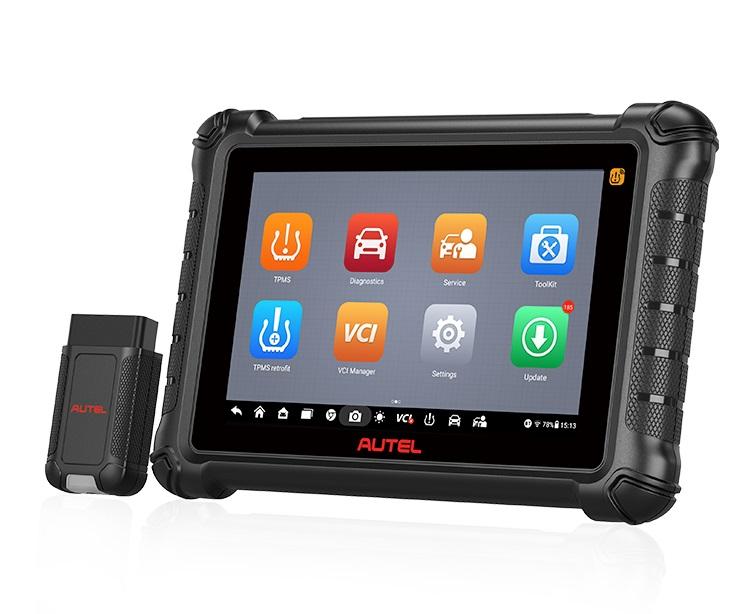

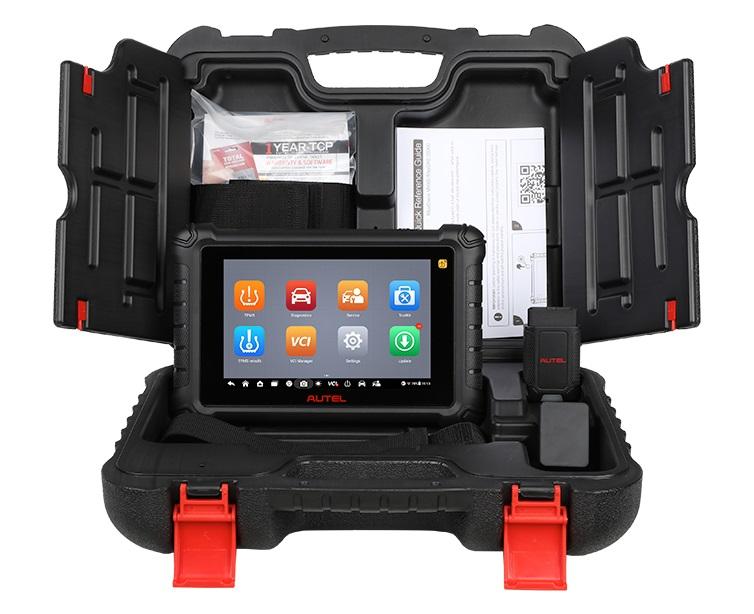

Main Unit
MaxiVCI V150
Power Adapter
USB Type-C Cable
Soft Cloth
Quick Reference Guide
Packing List
Carrying Case
