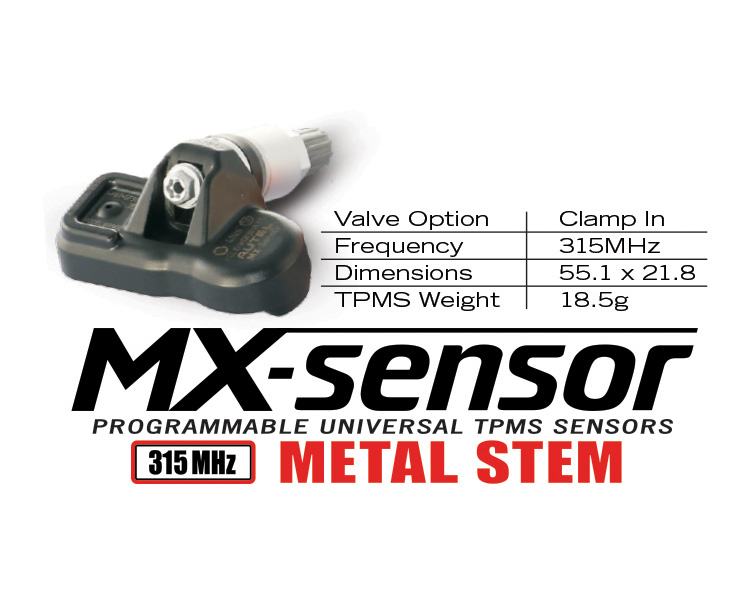

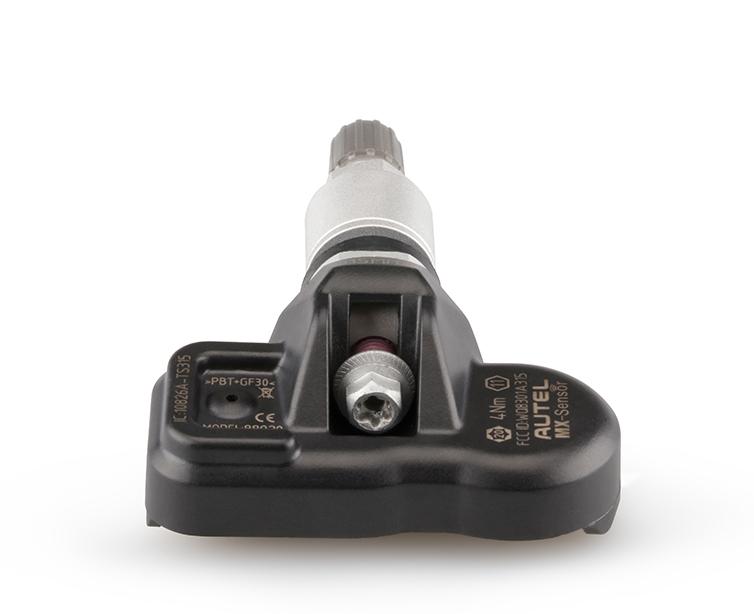

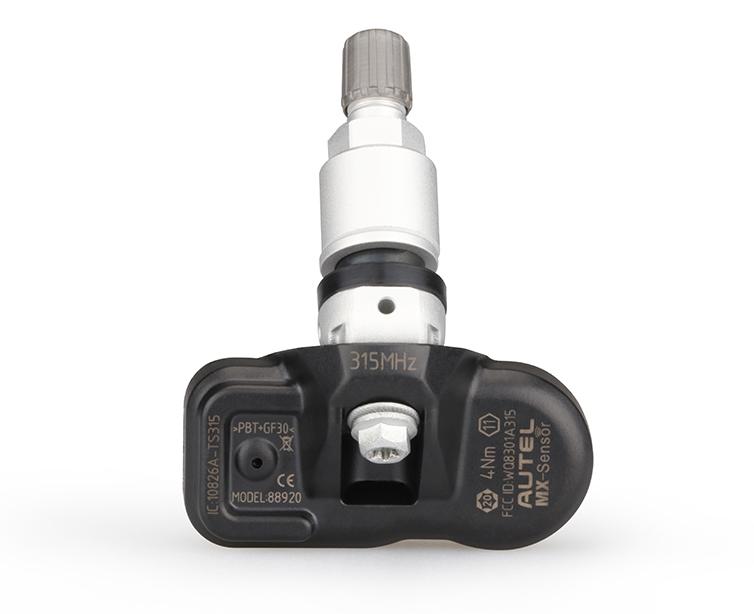

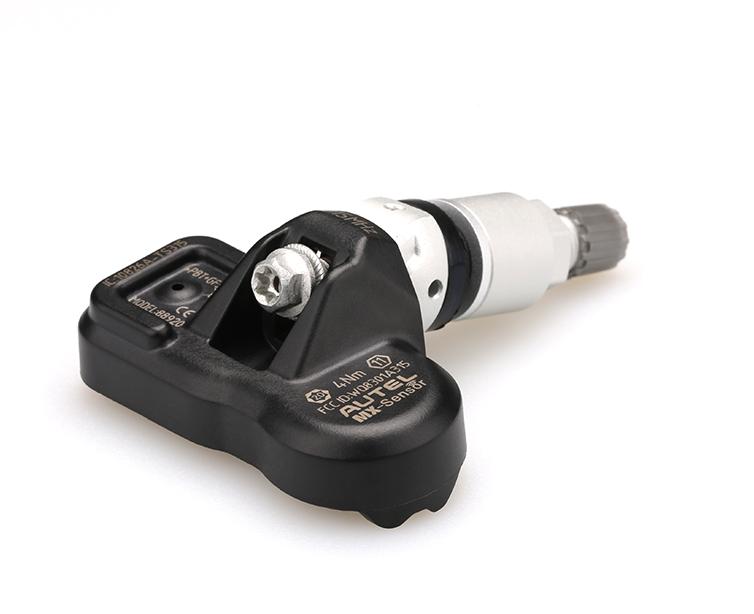

315MHz MX-Sensor M

Universal 315MHz Metal Stem Autel MX-Sensors offer the latest model vehicle coverage because these TPMS sensors quickly update during installation with an Autel wireless programming tool. Only two sensor types cover 98% of all OE sensors on the market and are ID clone-able with no sensor re-learn required.


- Covering 98% of all OE sensors on the market

- 2 sensor types to reduce inventory (two valve types available)

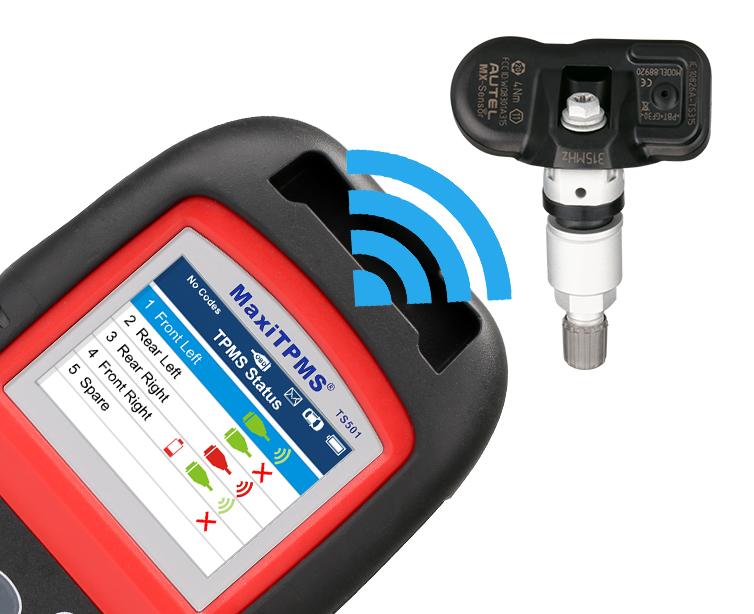

- Wireless sensor programming with Autel TPMS service tools

- 100% ID clone-able sensor with no re-learn required

- Independently tested and certified to meet SAE standards

Autel MX-Sensors are affordable and easy to use programmable universal TPMS sensors, with only two SKU options to reduce parts inventory to reduce tire and wheel service time and increase profits. All the Autel MaxiTPMS tools can wirelessly activate, diagnose, program, and relearn all the Autel MX-Sensors to quickly and more effectively complete installation projects. Autel guarantees that the sensor is free from material and manufacturing defects for a period of twenty-four (24) months or for 24,000 miles, whichever comes first.


Battery Life ≥5 years
Operating Temperature -40°C to +125°C
Storage Temperature -40°C to +150°C
Operating Humidity 90%
Operating Frequency 315 MHz
Pressure Monitoring Range 100 to 900 kPa
Pressure Reading Accuracy ±10 kPa
Temperature Reading Range -40°C to +125°C
Temperature Reading Accuracy ±5°C
G Sensor Reading Accuracy ±15%
Transmission Power 5-8 dBm
Battery 3.0 V

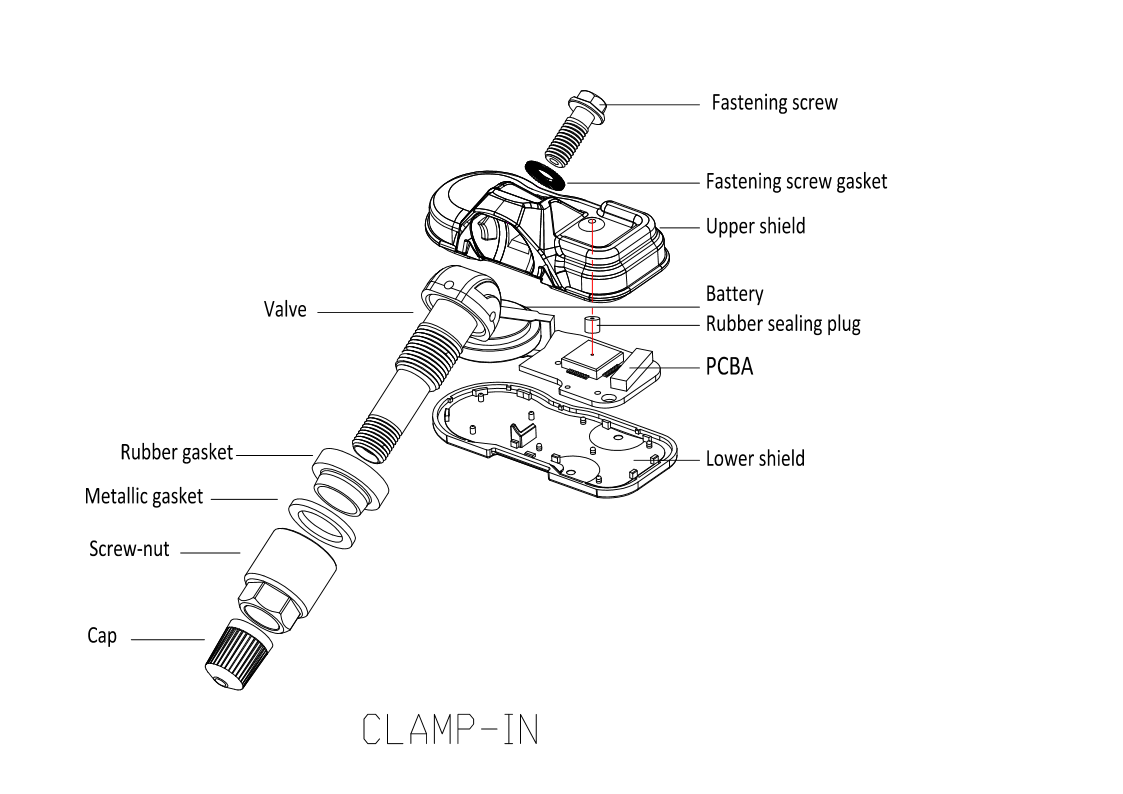

Dimensions (W x H x D) 55.1 mm x 29.4 mm x 21.8 mm (Clamp-in Sensor)
Weight (Without Valve) 18.5 g (Clamp-in Sensor)

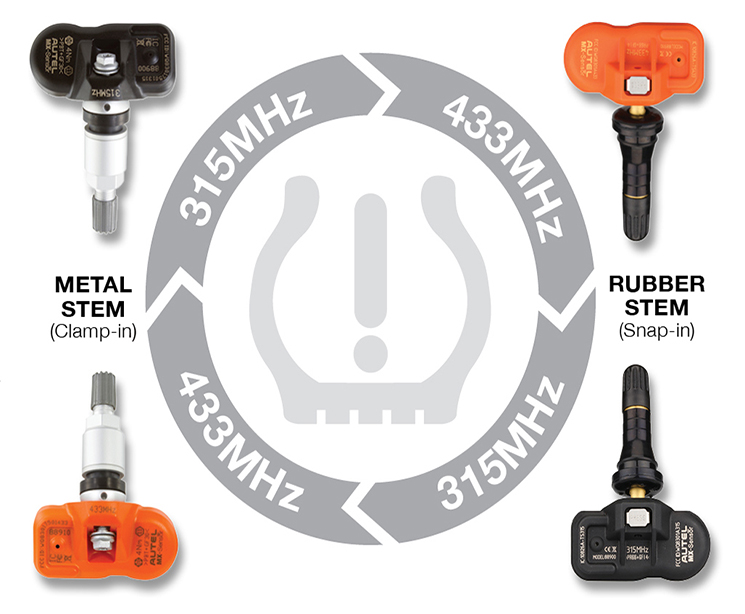

Greatly reduce inventory investment with only two universal sensor solutions to cover 98% of all OE sensors on the market. With both metal valves and rubber valves available, easily choosing the correct 4-SKU sensor option minimizes installation time and provides a quick and simple assembly.
