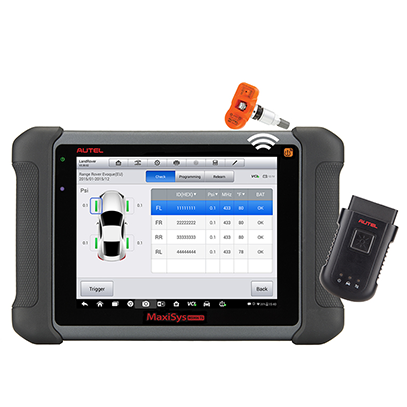

MaxiSYS MS906TS
MaxiSYS MS906TS
MaxiSYS MS906TS
MaxiSYS MS906TS
MaxiSYS MS906TS

MaxiSYS MS906TS

AFFORDABLE SCAN TABLET & TPMS SERVICE TOOL

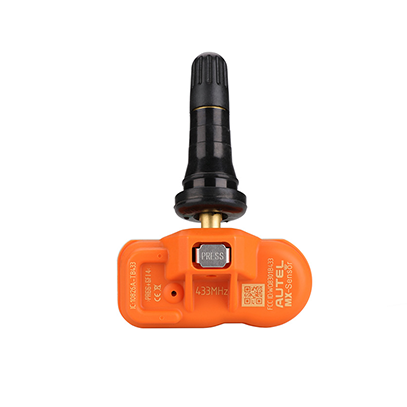

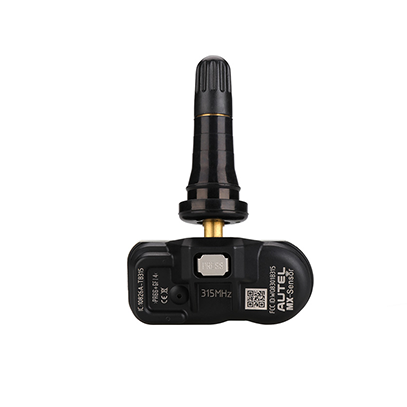

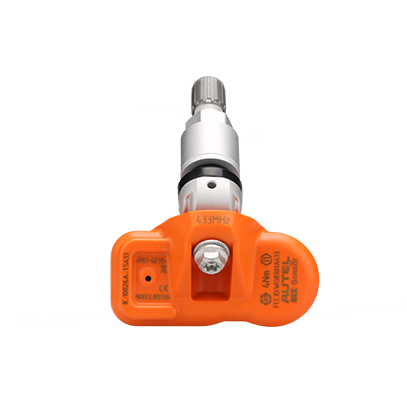

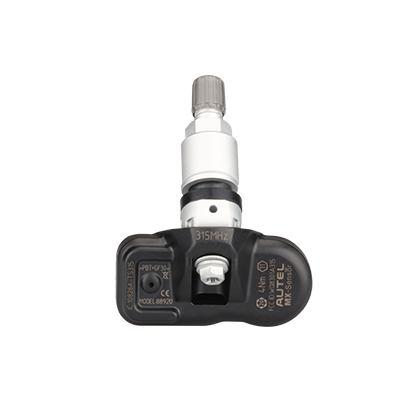

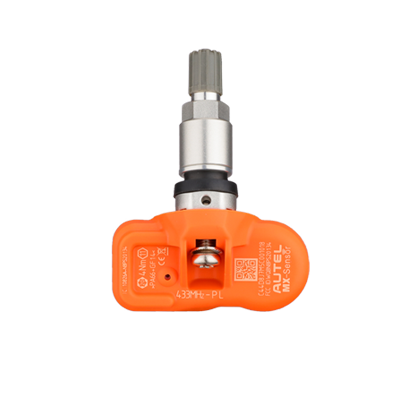

Why buy a secondary TPMS tool? The MS906TS is an all-in-one industry first combining advanced diagnostics with complete TPMS functionality. Now technicians don’t need a second TPMS tool to trigger, relearn, or program Autel MX-Sensors. Quickly test all vehicle systems with one ultra-fast, lightweight, wireless, touch screen tablet with the same vehicle coverage and advanced diagnostics as the MS906.

left right
  • MaxiSYS MS906TS
  • MaxiSYS MS906TS
  • MaxiSYS MS906TS
  • MaxiSYS MS906TS
  • MaxiSYS MS906TS

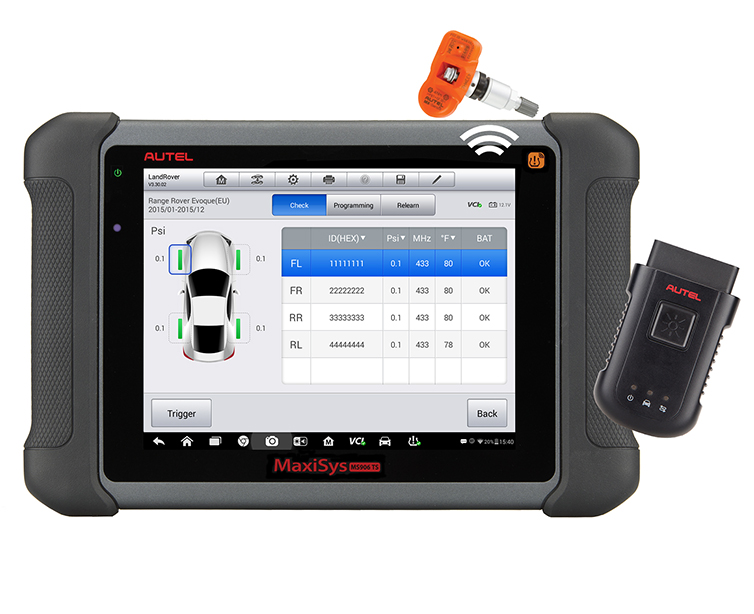

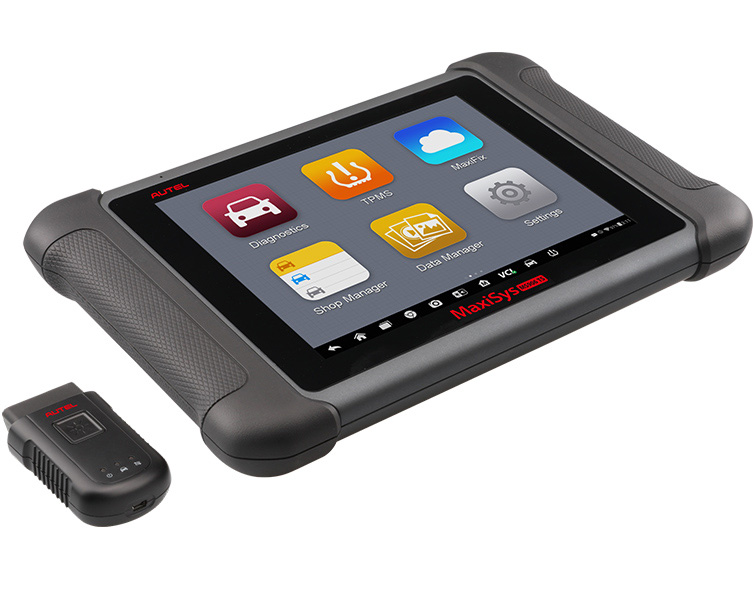

Wireless TPMS & Advanced Diagnostics System

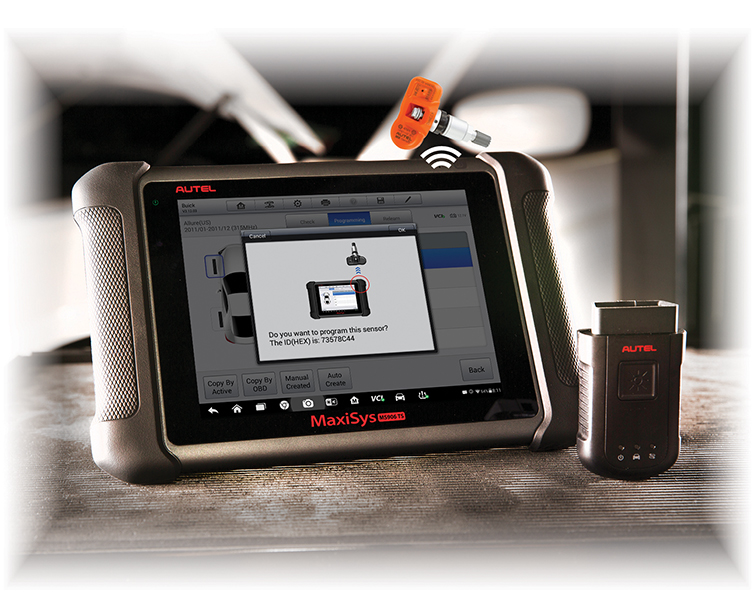

Operating on the Android navigation system, the MS906TS provides amazingly fast sensor programming and diagnostic scan functions with its powerful running speed and large 32 GB solid state hard drive. The system also features the latest AutoVIN technology to identify vehicles in one touch as well as its exclusive AutoScan function. These features allow you to easily acquire vehicle information, scan all ECUs and run diagnostics on selected systems.

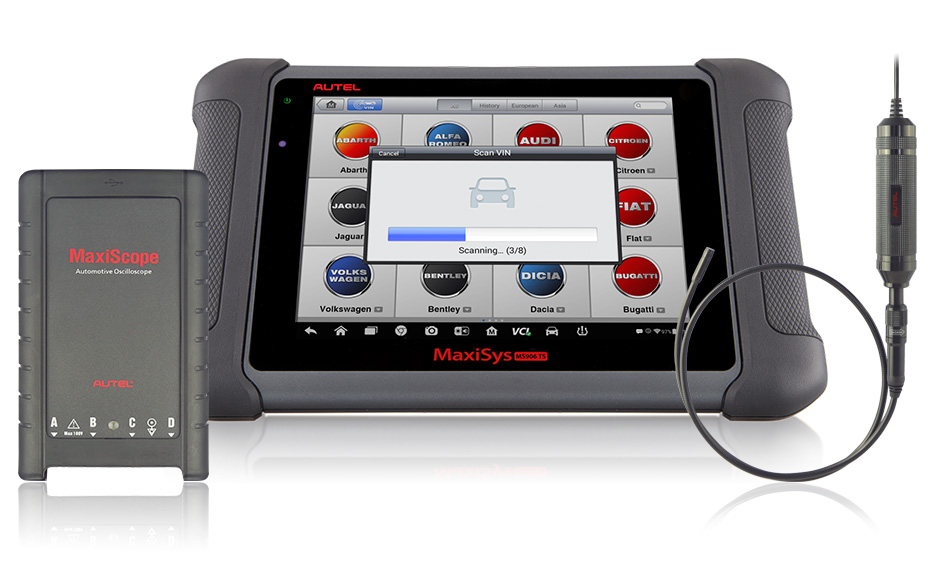

Optional Compatible Accessories

Featuring the best possible coverage of OE-level diagnostics and ECU coding capability, the MS906TS also supports add-ons like an oscilloscope and inspection camera to perform more extensive professional testing.

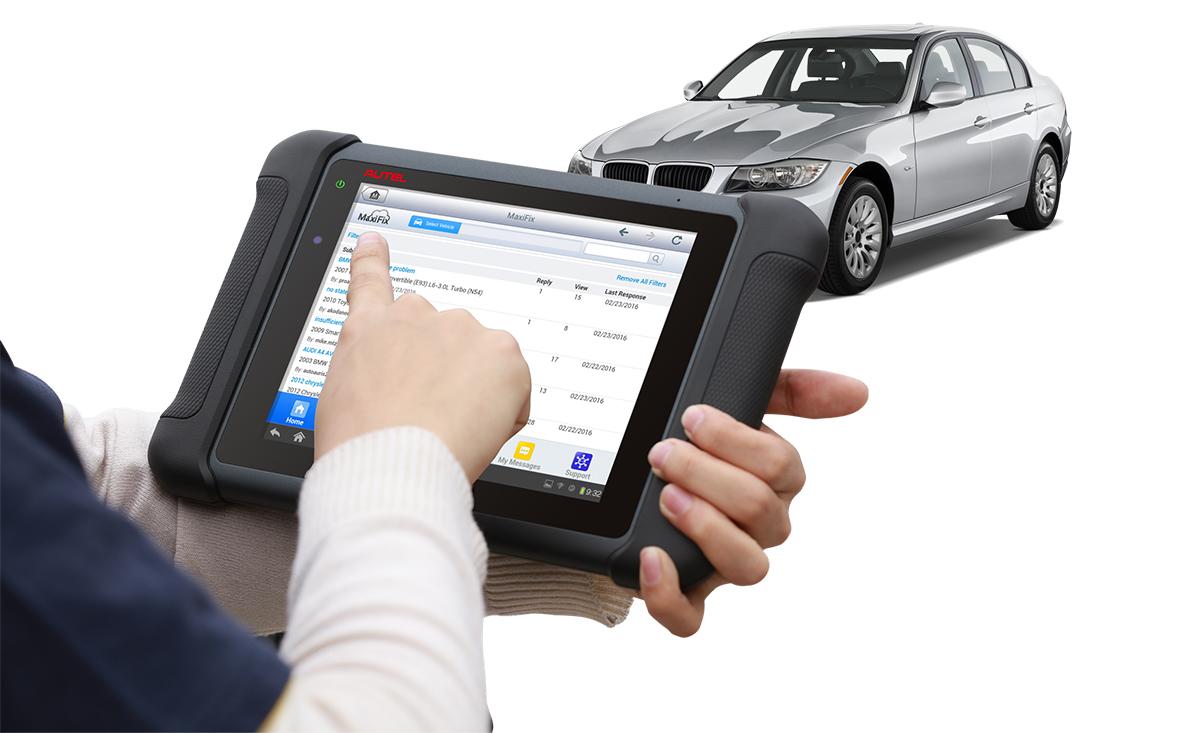

Autel Cloud: By and For the Community

As one of the fastest growing diagnostic companies in the world, Autel's innovators are determined to extend the boundaries of wireless evolution. Supported by superfast 802.11b/g/n Wi-Fi, big data becomes even more accessible. Autel now integrates real-time big data into the MaxiSys system using cloud-based innovations:

  • MaxiFix, Autel's online community of global professional technicians, offers a constantly expanding database which includes industrial professionals from around the world offering thousands of successful Fix & Tips that are shared, discussed and updated every day. This feature brings essential resources to your desktop in real time, granting quick and easy search of diagnostic and repair procedures, tips, and advices.

  • The Support module helps Autel users keep track of their devices by saving product update, repair and complaint records; it also provides a platform for communicating with support personnel directly through Data Logging sessions, and with other Autel users through specific product community channels.

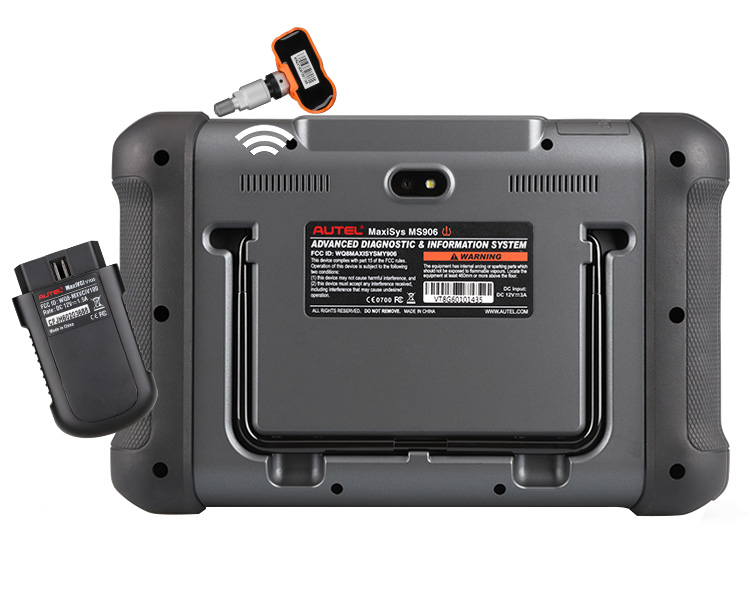

  • Enhanced wireless connectivity between the display tablet and VCI device allows greater mobility and ease at work.



Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos T5260 hex-core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2GB RAM & 32GB ROM
Display 8.0” LED capacitive touchscreen with 1024 x 768P resolution

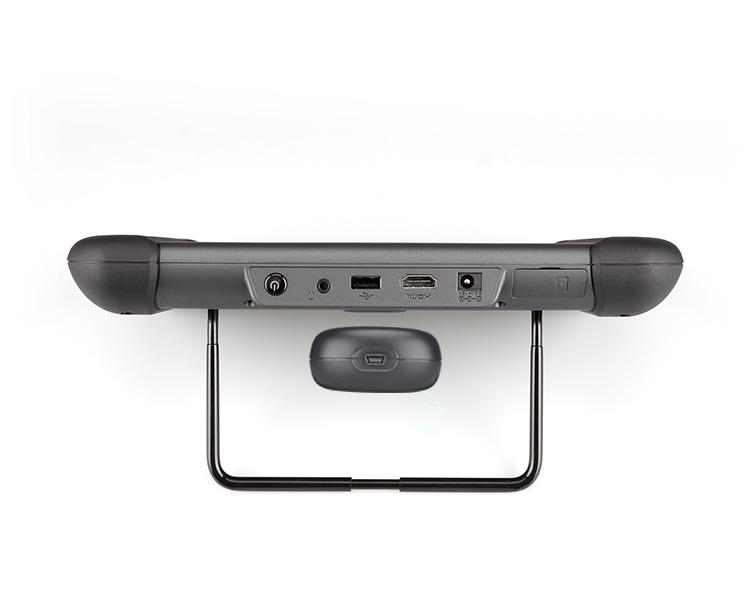

Connectivity Wi-Fi (802.11 b/g/n), USB: 2.0, Mini USB 2.0, Wireless BT V2.1+EDR, Class1, HDMI 1.4a, SD Card (support up to 32GB)
Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker, 3-Band 3.5 mm stereo/standard headset jack
Power and Battery 10,000 mAh 3.7 V lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage 12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rugged housing and extra rubberized protection

Dimensions(W x H x D)

270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
Weight NW: 1.10 kg (2.42 lb.)
Warranty 1 year
Software Update 1 year free

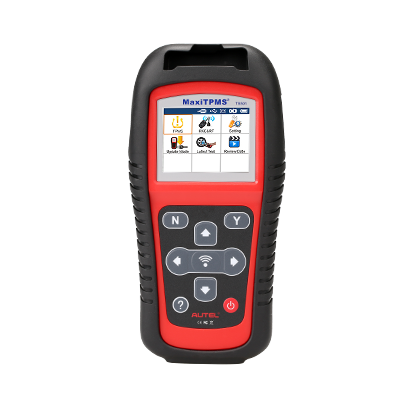

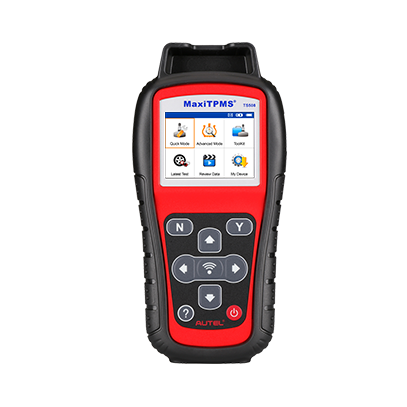

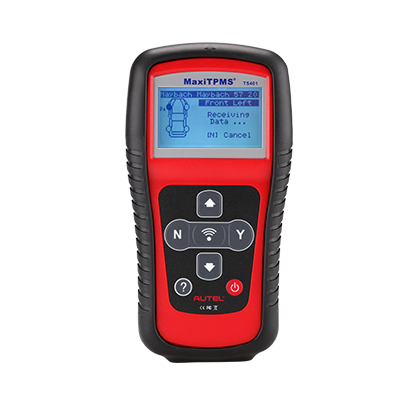

Comparison TS608 MS906 TS TS601 TS508 TS501 TS408 TS401 TPMS PAD
TPMS function
Quick Mode & Advance Mode
Activate TPMS sensors
Read sensor data
TPMS diagnose, one step for complete TPMS health check
Read/clear TPMS DTCs; on-screen DTC description
Scan TPMS sensor ID and copy ID into MX-Sensor
Program MX-Sensor by auto creating sensor ID
Read Sensor ID by OBD and copy ID into MX-Sensor
Relearn by OBD function
Relearn procedure guide on the tool
Check Key FOB
Read TPMS live data
Tire Type/Pressure selection
Other TPMS special functions
TPMS Toolkit (other function)
Diagnostic function
Basic OBDII code reader
Read/clear codes for all electronic systems
Support all 10 test modes of the latest J1979 OBDII test specs
Enhanced OBDII Mode 6
Display live data in text, graph & analog for easy data review
Relearn parking brake pad after replacement;
Reset Steering Angle Sensor (SAS);
Reset service mileage and service intervals;
Forced regeneration and adjusting injectors;
Support battery registration and reset
Support IMMO functions
Complete diagnostic function
Tool features
Built-in rechargeable li-ion battery
Strong housing with protective rubber boot
Print TPMS sensor data via PC
Internet updatable WIFI WIFI SD card USB SD card USB USB USB
Multilingual support
Historical test records
Software Update 1 year free 1 year free free free free free free free
Limited one year warranty



  • User manual

  • MaxiVCI V100

  • USB cable

  • Power adaptor

  • Cigarette lighte

  • Light fuse

  • Honda-3

  • Nissan-14

  • Mitsubishi-Hyundai-12+16

  • Kia-20

  • Benz-38

  • BMW-20

  • VW-AUDI-2+2

  • Fiat-3

  • PSA-2

  • GM-Daewoo-12

  • Benz-14

  • Chrysler-16

  • Quick-reference-guid

  • Packing-list

  • CD

  • Soft-cloth

  • Carry case
